Multi-Function Control ETMFC610 http://www.entecene.co.kr
LOAD VOLT
VR : Displays the measured phase R RMS voltage and phasor (V, deg°) in load side
VS : Displays the measured phase S RMS voltage and phasor (V, deg°) in load side
VT : Displays the measured phase T RMS voltage and phasor (V, deg°) in load side
V1 : Displays the measured normal sequence voltage and phasor (V, deg°) in load side
V2: Displays the measured negative phase sequence voltage and phasor (V, deg°) in load side
3V0: Displays the zero sequence voltage and phasor (V, deg°) in load side
LINE VOLT
AB : Displays the measured AB line voltage and phasor (V, deg°) in load side
BC : Displays the measured BC line voltage and phasor (V, deg°) in load side
CA : Displays the measured CA line voltage and phasor (V, deg°) in load side
RS : Displays the measured RS line voltage and phasor (V, deg°) in load side
ST : Displays the measured ST line voltage and phasor (V, deg°) in load side
TR : Displays the measured TR line voltage and phasor (V, deg°) in load side

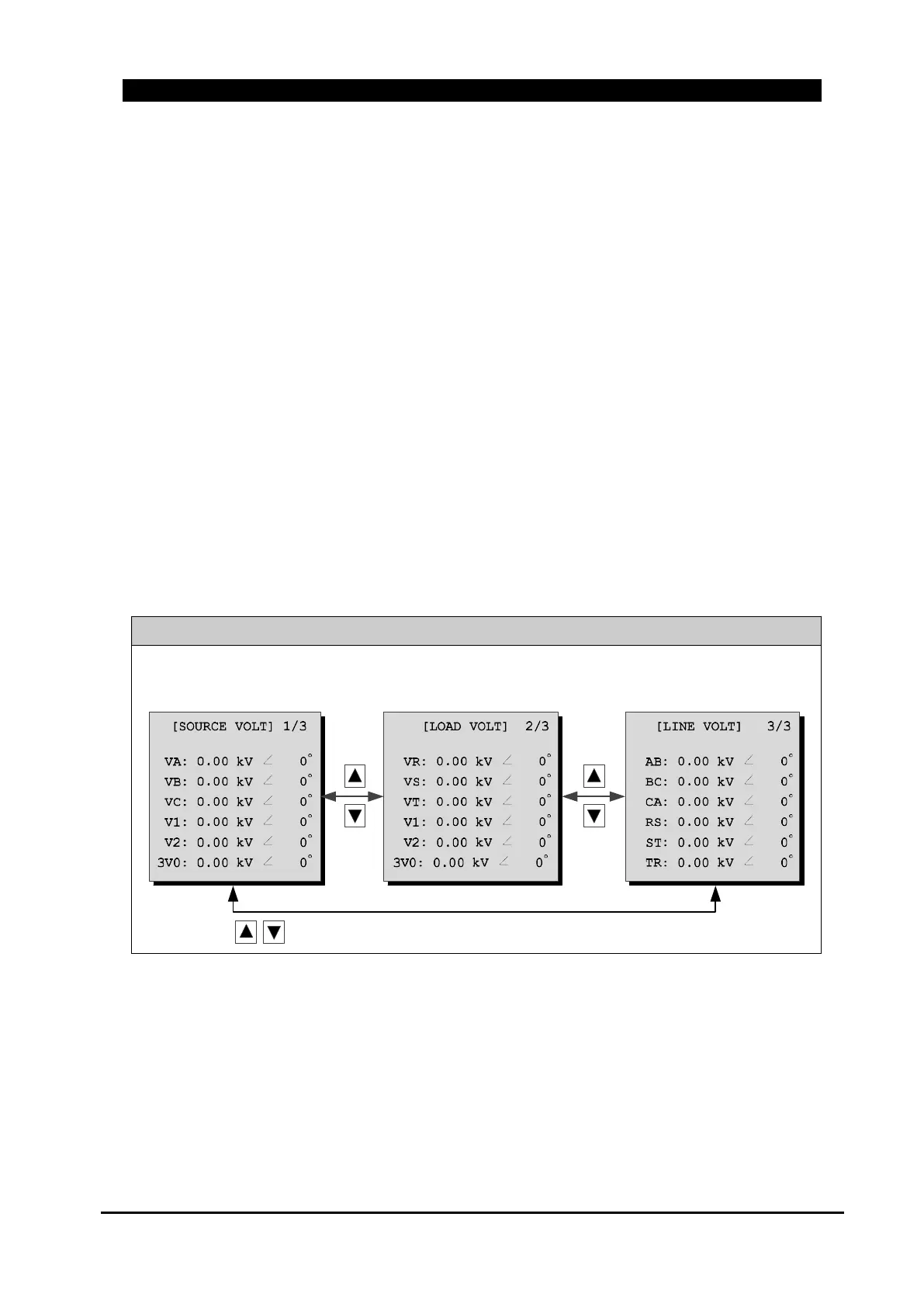

You can confirm in “MAIN MENU / METERING / VOLTAGE”
MAIN MENU / METERING / VOLTAGE
Voltage and angle per phase are displayed. Use [▼][▲] button to check it.
