5.7. SCADA Connector (Option)

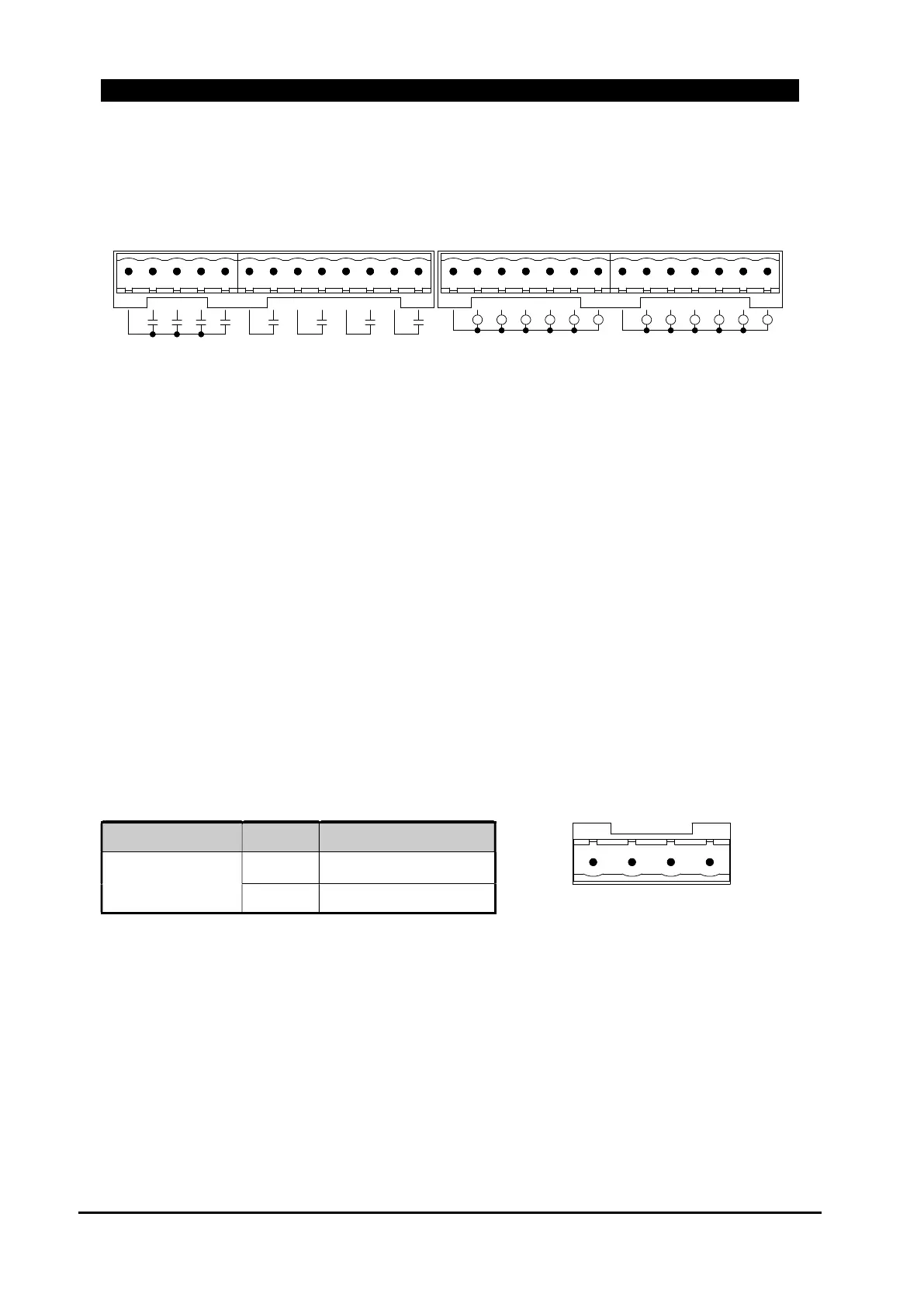

Figure 5-12.SCADA Input, Output Terminal
Digital output (DO) part is composed of total 8 relay outputs. connector outputs control command.
Digital input (DI) part receives 12 status signals in total by using electrically insulated contacts.
Connector is for receiving status inputs from the control element.
5.8. Power Input / Battery Input Connector
Power Input Connector for ETMFC610’s AC24V Power Supply.
It is a battery input connector to charge the battery using inner charger circuit
Table 5-12. Power/Battery Input Pin Description
Figure 5-13. Power & Battery Input
Thermistor
Connector Pin
Description
Power/Battery
Input Connector
1,2 BATT INPUT
3,4 AC 24V INPUT
5 4 3 2 D01 8 7 6 5 4 3 2 C01 07 06 05 04 03 02 B01 7 6 5 4 3 2 A01
OUT101102103104105106107108 IN101IN107 102103104105106108109110111112
INPUTOUTPUT
BAT+ BAT- AC24+ AC24-
G01 2 3 4
