Multi-Function Control ETMFC610 http://www.entecene.co.kr
5.5. Status Inputs Connector
8 inputs of status provision.
Table 5-10. Status Input Pin Description

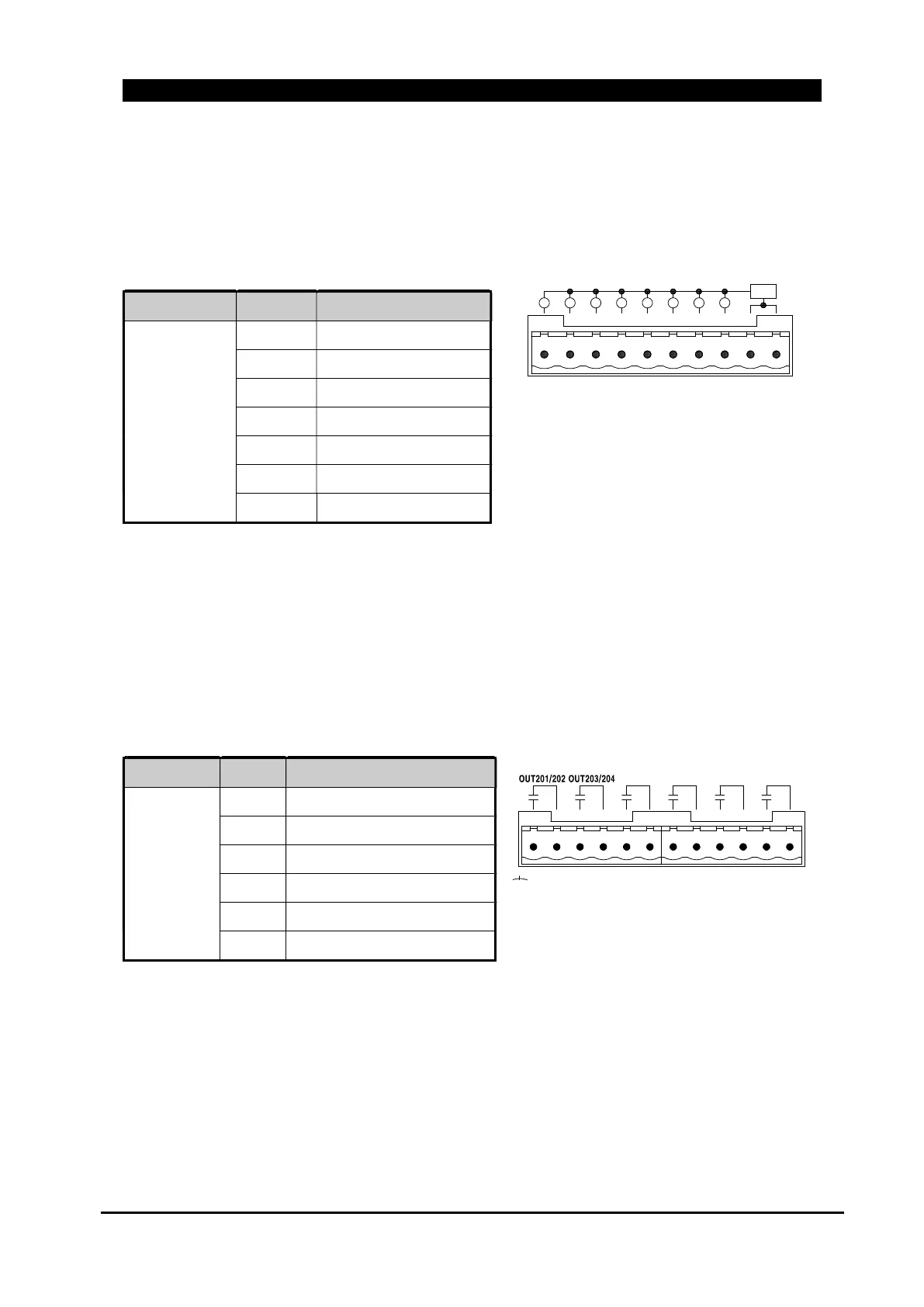

Figure 5-10. Status Input Terminal
Connector Pin
Description
Status
Input
Connector
1 Open Status
2 Close Status
3 Gas Pressure Low
4 Manual Unlock
6 Door Open Status
5,7,8 Reserve
9,10 Common
5.6. Outputs Connector
Digital Output(DO) terminal has total 6 relay output where sending a control signal, its pin
arrangement is as follow.
Table 5-11. Output Pin Description
Figure 5-11. Output Terminal
Connector
Pin
Description
Output
Connector
1, 2 OUT201/OUT202(OPEN)
3, 4 OUT203/OUT204(CLOSE)
5, 6 OUT205 (OPEN)
7, 8 OUT206 (CLOSE)
9, 10 OUT207 (Reserve)
11, 12
OUT214 (Reserve)
Open operation is controlled by two ports of OUT201 and OUT202, and operates when
OUT201 is high and OUT202 is low.
Close operation is controlled by two ports of OUT203 and OUT204, and operates when
OUT203 is high and OUT204 is low.
K01 2 3 4 5 6 7 8 9 10
PW
IN201 202 203 204 205 206 207 208
OUT205 OUT206 OUT207 OUT214
I01 2 3 4 5 6 7 8
+
9 10 11 12
