6.1. Construction
Panel consists of eight sections as below;
Operation Section
Local Control Section
Menu Control Section
Fault Indication Section
Voltage Elements Section
System Diagnostic Section
Battery Status Section
User Selected LED Section
6.1.1. Operation Section
OPEN
Pressing OPEN push-button sends a trip signal to the Switch (or CB).
CLOSE
Pressing CLOSE push-button sends a close signal to the Switch (or CB).
ETMFC610 has a feature of Manual Close Time Delay. The Close Time Delay allows a delay of
0.00 to 600.00 seconds after pressing the close push-button before closing the tank. During the
manual close delay time, if the CLOSE push-button is pressed, it closes immediately without
waiting for the close delay time to be completed.
POSITION LED
Indicates the position of the the Switch (or CB). Position indicator is based on the Switch (or CB)
52a contacts.

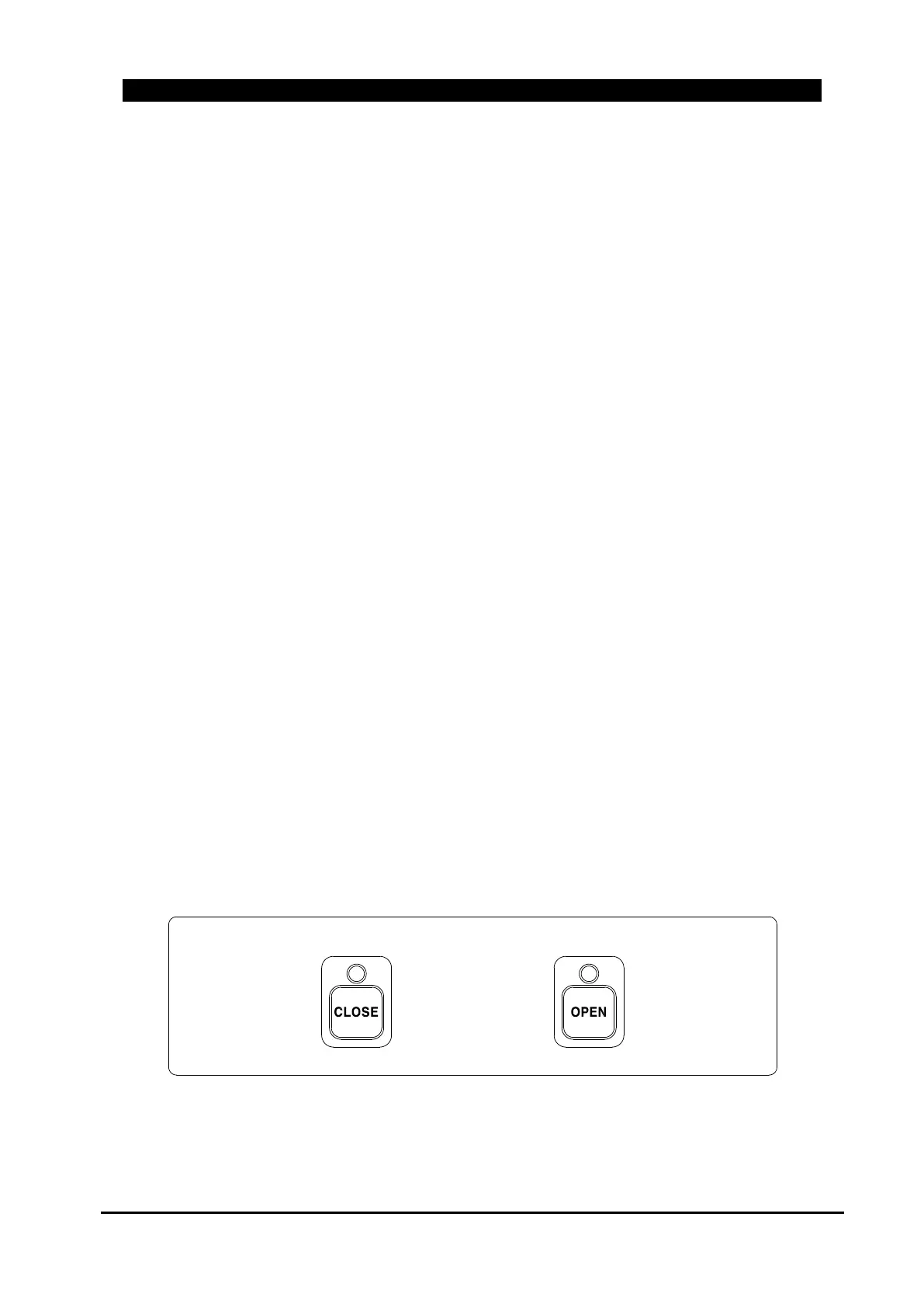

Figure 6-2. Operation Section
