6.2. LCD Display
20

8 character LCD which has back-light support, is used for a user to operate conveniently and
to check operation status clearly.

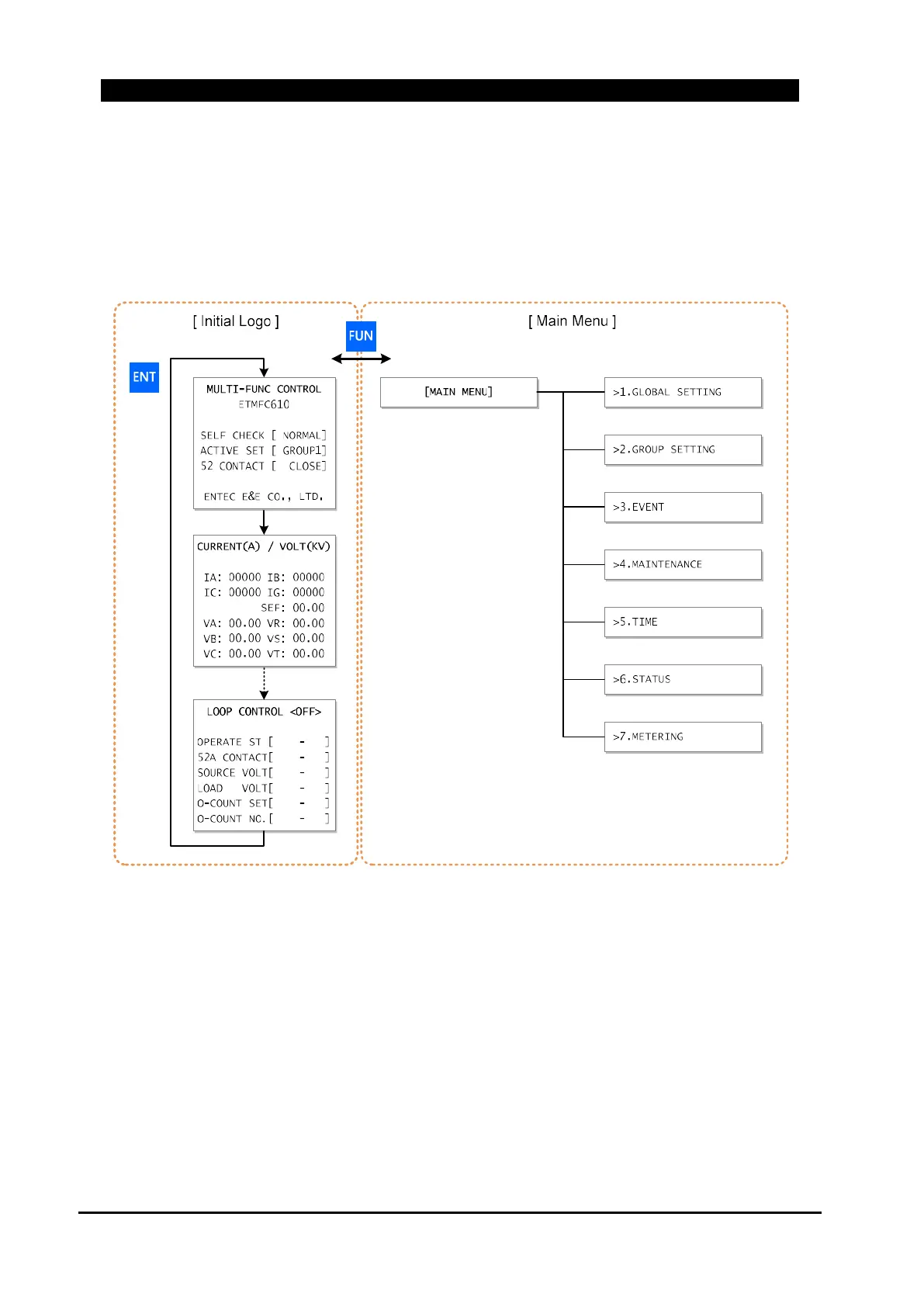

Figure 6-13. Initial Logo and Main Menu
6.2.1. Menu Structure Tree
 Screen structure consists Initial Logo and Main menu.
 Initial screen and all menus are round robin algorithm.
 Menu screen is divided in to Setting and Event management menu.
 Main menu has 7 sub-menus.
