2) Pre-fault length Setting
User sets the length of pre-fault before Trigger.
PRIMARY SETTING / RELAY SETUP \ EVENT RECORDER \ Len' of Pre F
Range
0 ~ 14
Default
4
Step
1
Usually sets 4 cycles as default.
3) Stored Value Clear
Select “1. FAULT CYCLE” in “PRIMARY SETTING / REALY SETUP / CLEAR SAVED
DATA” to clear the stored value.
12.1.6. Interface software
Interface software shows Data and captured waveform (below)

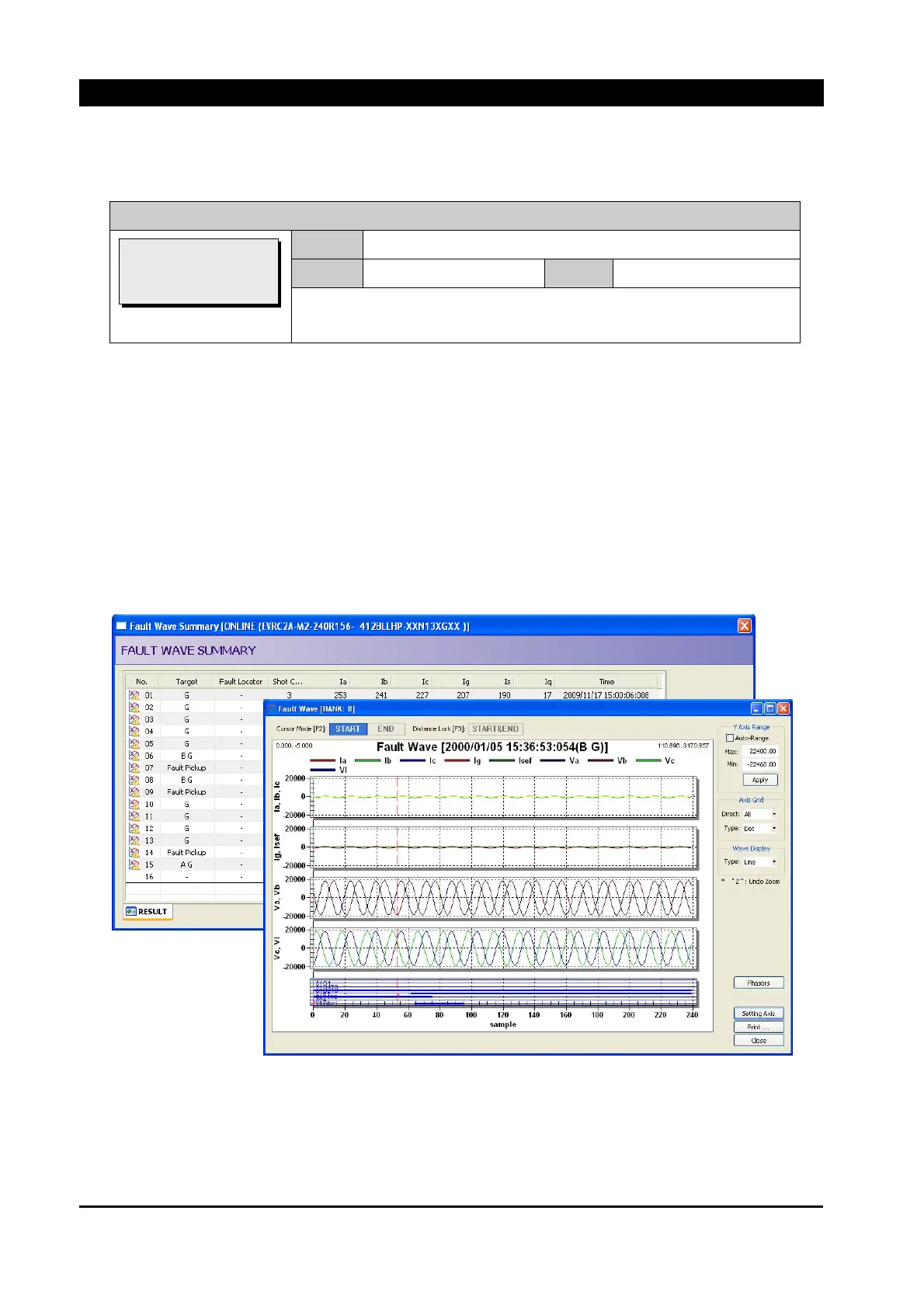

Figure 12-1. Data and captured waveform showed by Interface Software
[EVENT RECORDER]
Fault Cycle: ON
>Len' of Pre F: 4
Load Profile: ON
