13.29. Uninterruptible Power Supply for Trip & Close

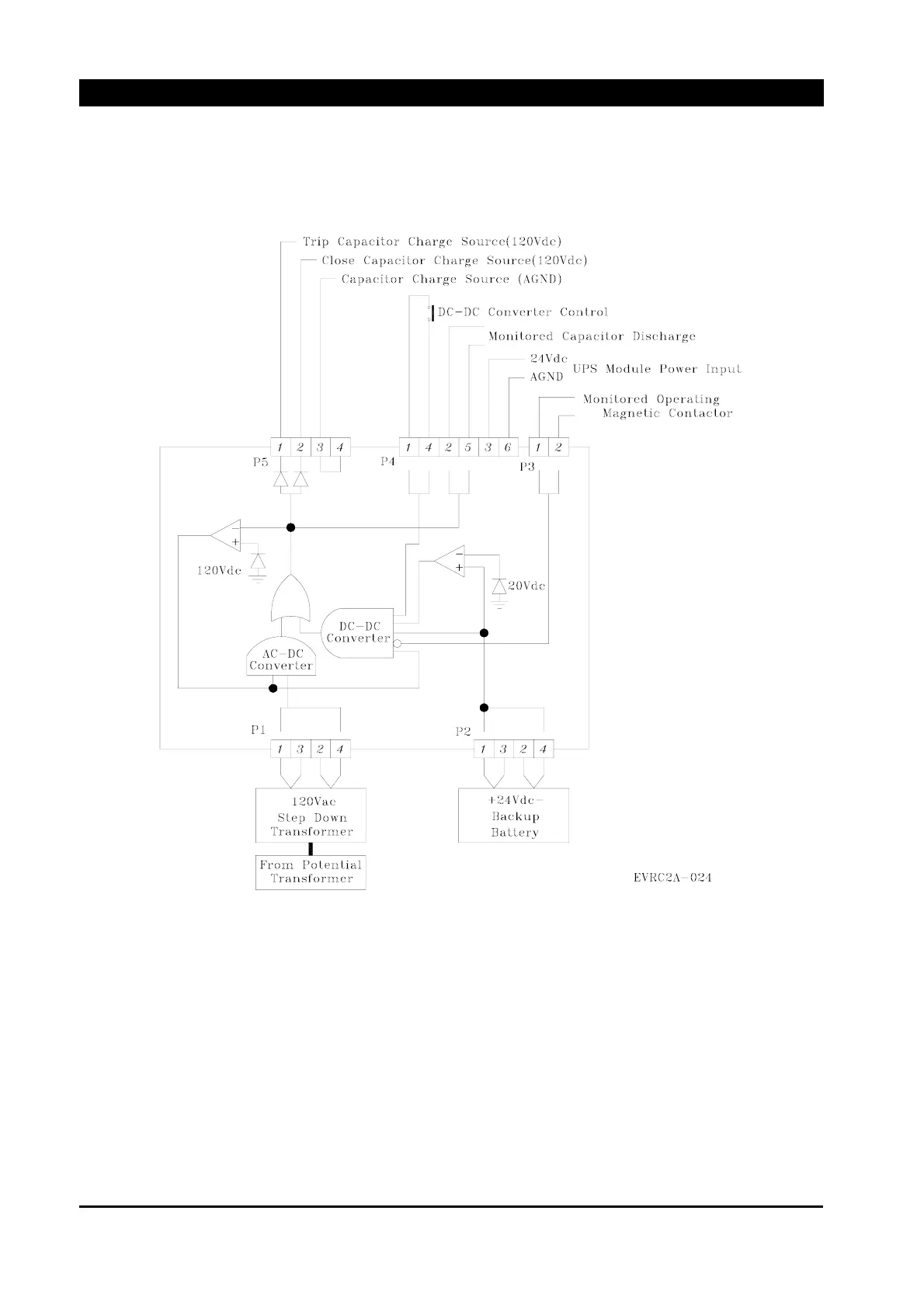

Figure 13-29. UPS Module Block Diagram
y UPS Module charges Capacitor for Trip/Close. Its rated output voltage is 120Vdc.
y Trip and Close Capacitor are individually located and do not affect to each other during Trip
and Close.
y UPS Module runs by 120Vac Power or by Backup Battery.
y Transformer in EVRC2A connected with External AC Power generates 120Vac.
y Sealed lead-acid Type is used for Battery. Battery voltage does not run under 20Vac, runs
over 20Vdc.
