13.17. Control Cable Assembling / De-assembling
y Do not turn Plug body when Control Cable assembling/de-assembling.
y For Control Cable assembling, connect with Receptacle check based with Pin Guide position.
Following notices are suggested.
 Turn Plug nut clockwise carefully to prevent Pin winding or out of gearing.
 Push Plug Body little by little with shaking left and right side into Receptacle; repeat this
to complete connection.
 Turn Plug nut to tighten for Control Cable de-assembling, do the opposite way of Control
Cable assembling

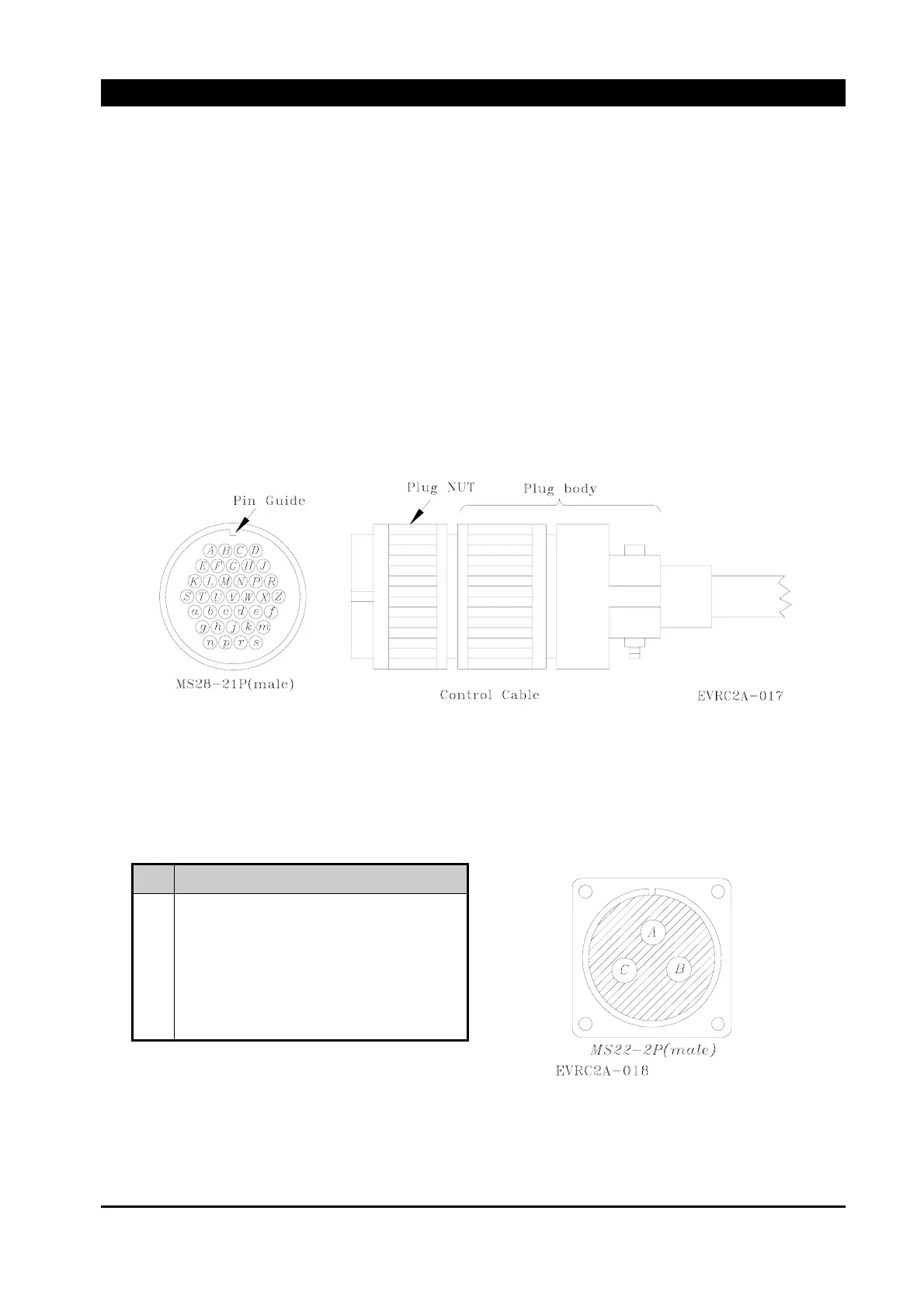

Figure 13-16. Recloser Receptacle Figure 13-17. Control Cable
13.18. AC Power Receptacle Pin Descriptions
Table 13-3. AC Power Receptacle Pin Descriptions
Pin Function
Figure 13-18. Power Receptacle
A
B
C
AC Power Input
AC Power Input (Neutral)
not connected
Standard Input Voltage of Control EVRC2A is
220Vac(110Vac – option).
