RECLOSER CONTROL EVRC2A-N6,NT http://www.entecene.co.kr
271
ENHANCED TECHNOLOGY
13.14. VT Wiring Diagram

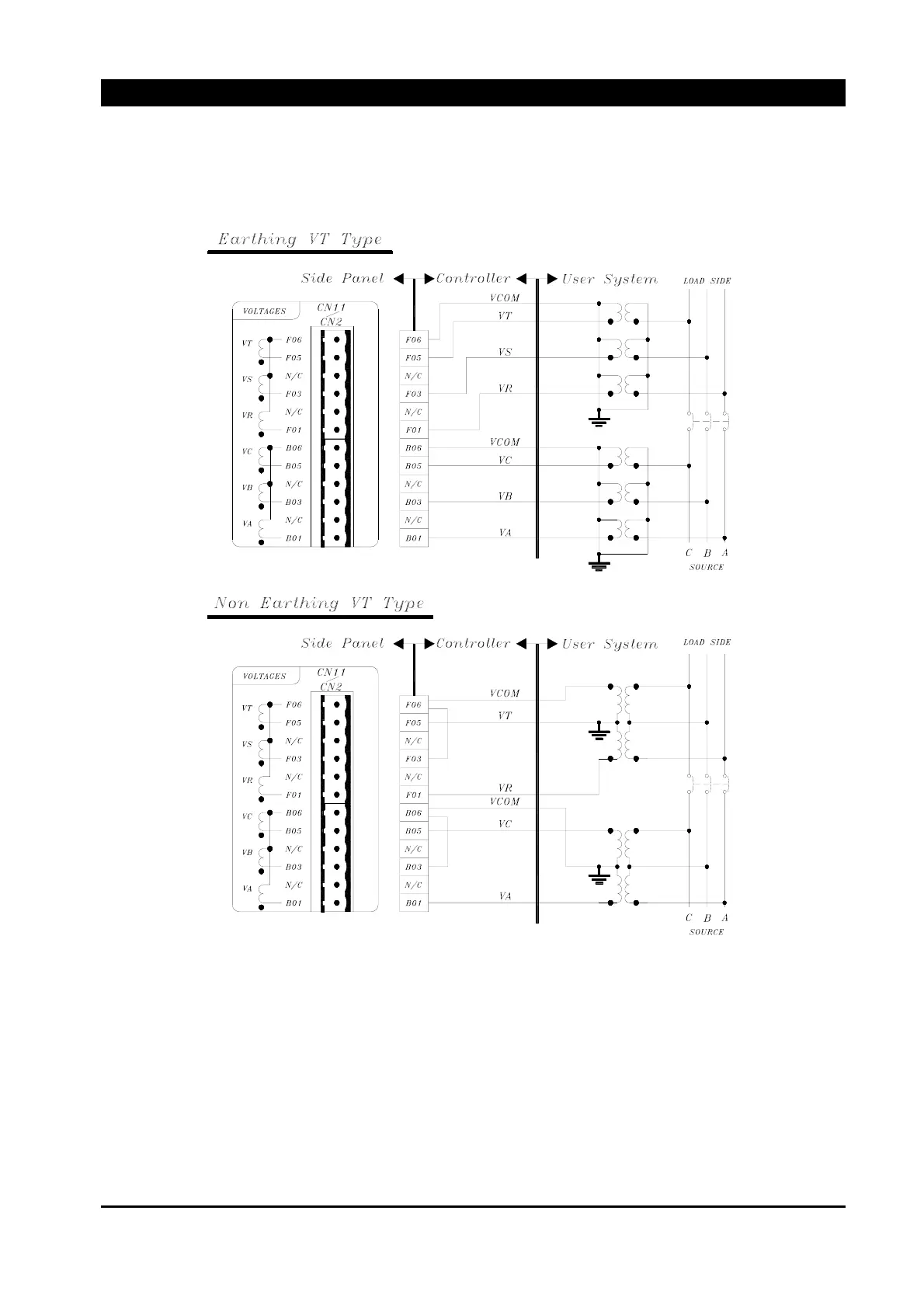

Figure 13-13. VT Wiring Diagram
y VD(CVD or RVD) Type can not be used when VT(Voltage Transformer) Type was selected.
y VT wiring should match Current Inputs.
y Voltage Inputs VA, VB, VC, VR, VS, VT
 Input Voltage Range : Vphase-Vcom Continuous < 300V
 Burden : 0.6VA(300V), 0.2VA(220V), 0.05VA(120V), 0.02VA(67V)
