13.5. Inner Structure

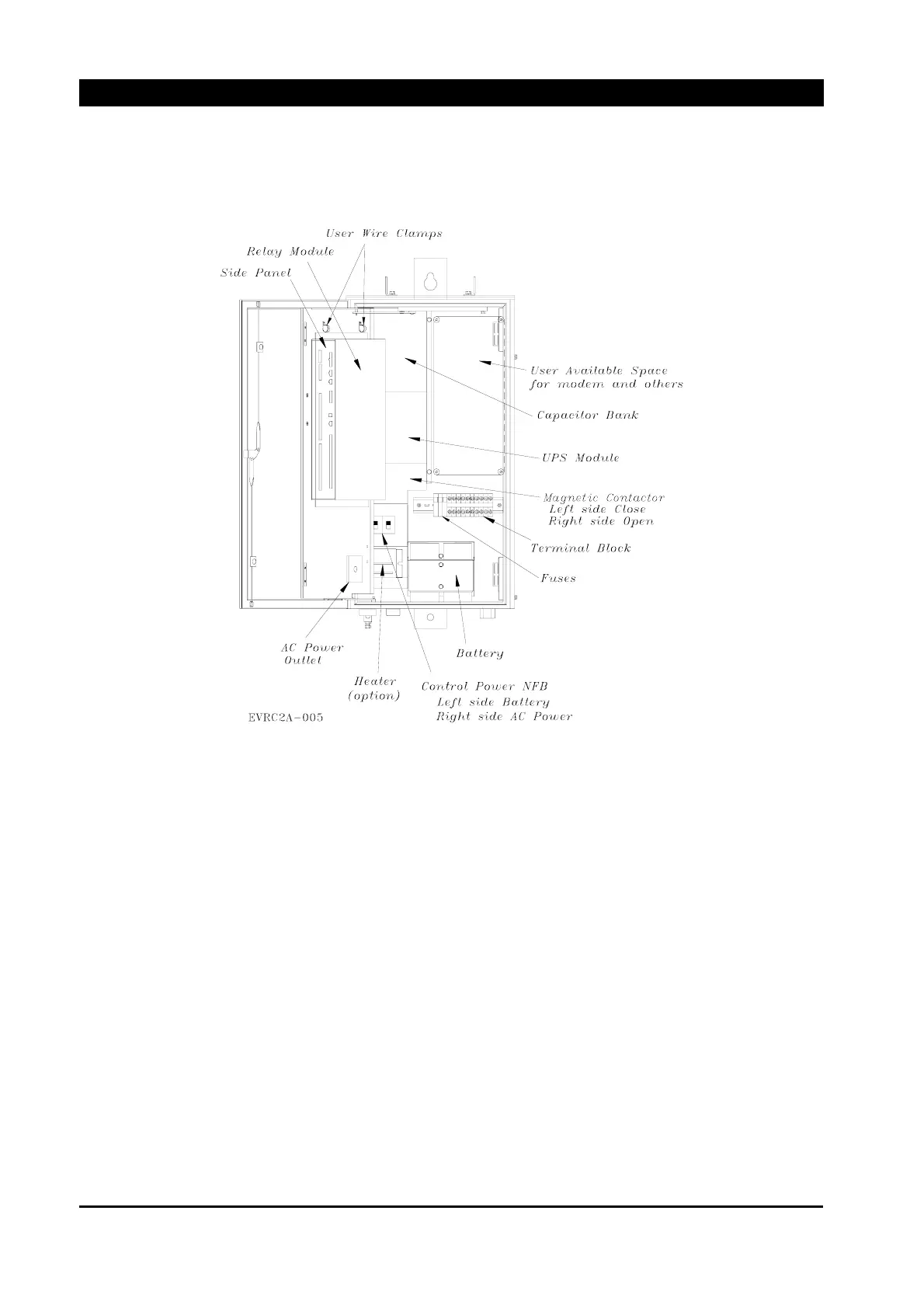

Figure 13-5. Inner Structure
Controller Power NFB (No Fuse Breaker)
Left side switch is for Battery and right side one is for 220Vac(or 110Vac – option).
Heater
Optional Heater is 40W
Battery
Use 2 of 12Vdc in series. Use (＋) screwdriver for replacement.
Fuse
TF1, TF2, TF3 are for circuit protection, refers to (see “13.20. Fuse”)
Terminal Block
Place for AC Power line, there are two ports for user.
User Available Space
Space for additional hardware connection. Installation and space size refers to “Figure 13-6.
Mount Accessories Dimensions”.
