13.33. Recloser EPR Wiring Diagram

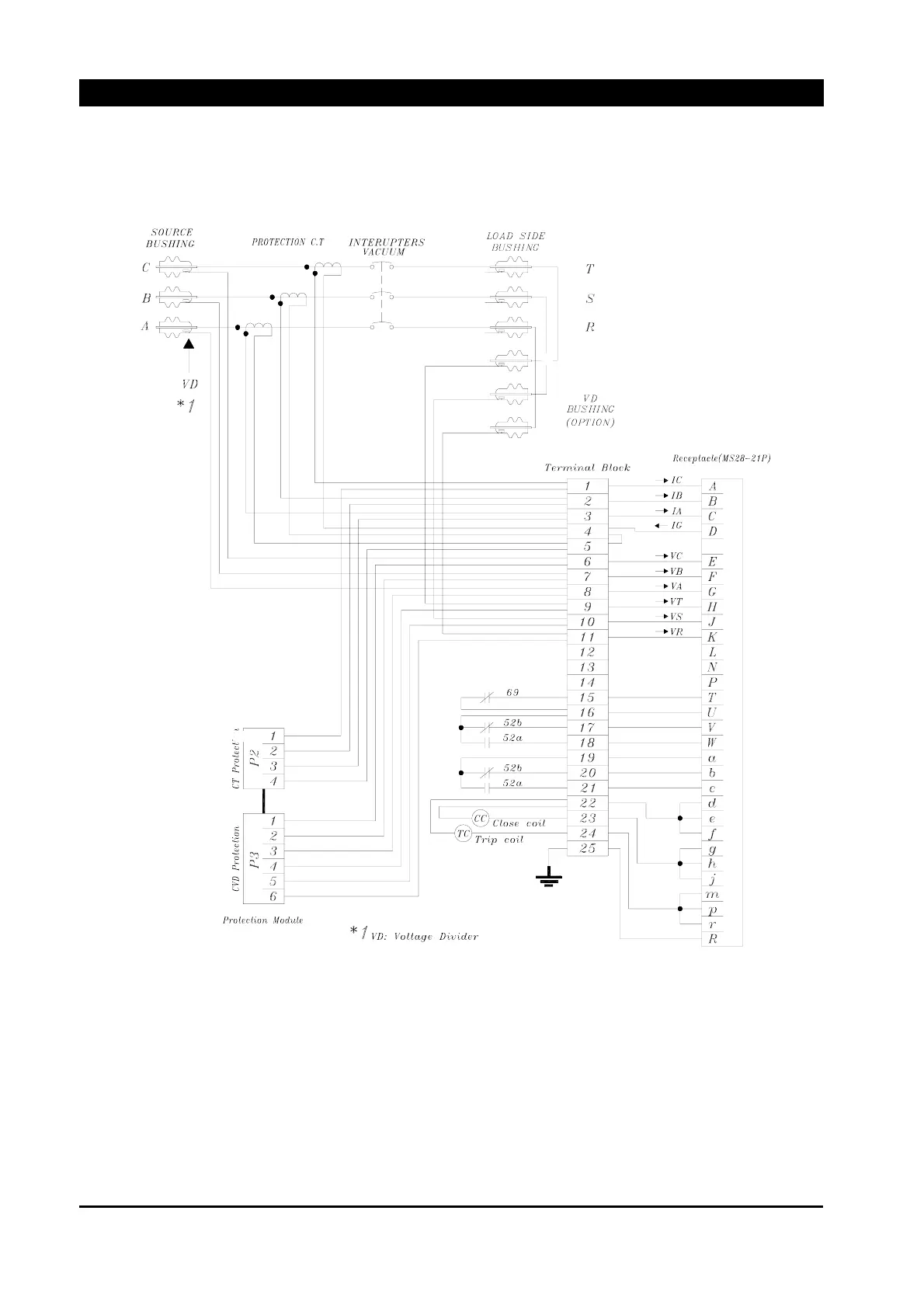

Figure 13-33. Recloser EPR Wiring Diagram
Recloser EPR standard wiring diagram
y CT Protection is automatically protected when Control Cable is disconnected.
y The resistance of RVD is 100MΩ, and also automatically protected when Control Cable is
disconnected.
