13.2. Vent and Outer Cover

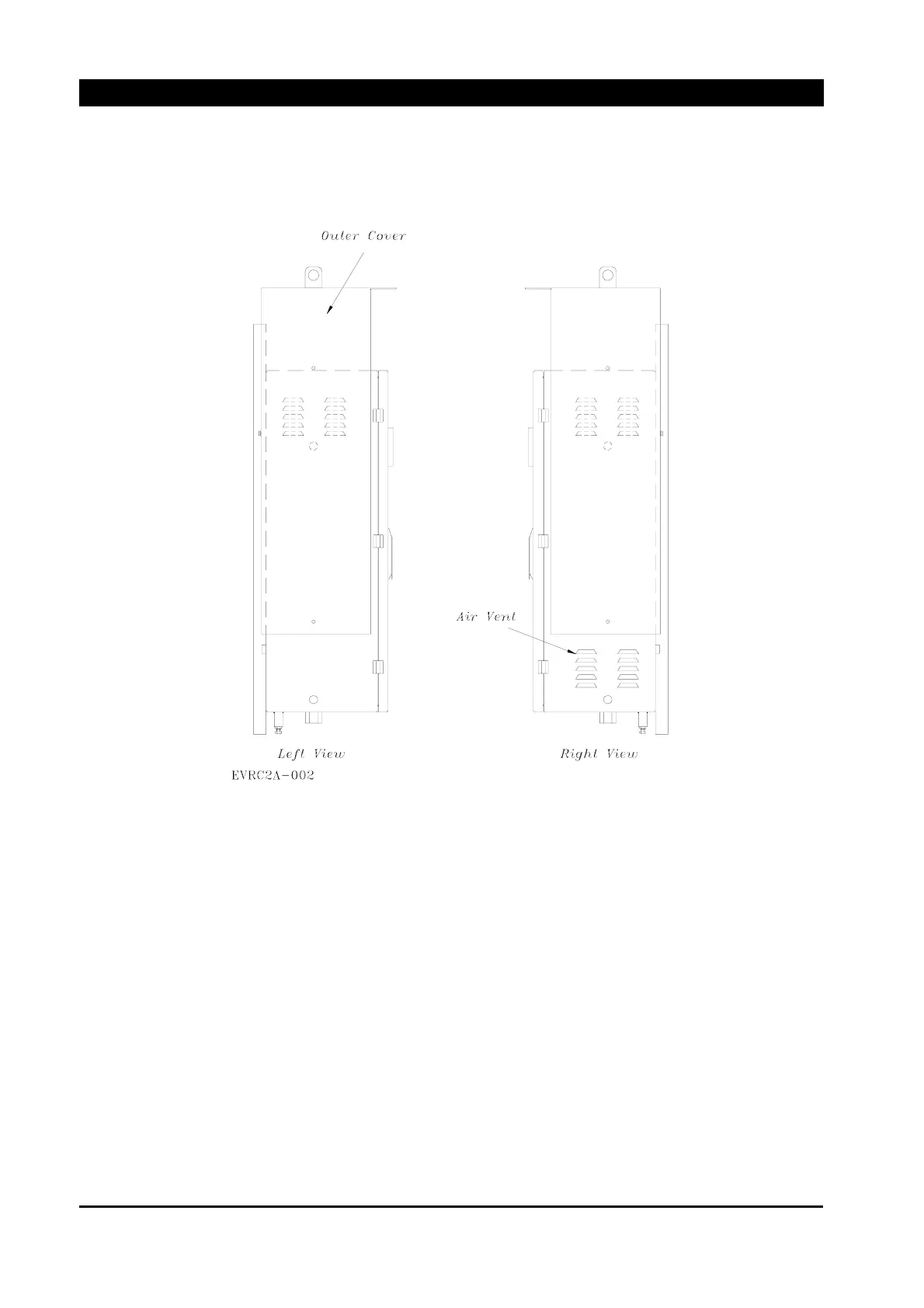

Figure 13-2. Air Vent and Outer Cover
Outer Cover
It is for blocking the direct ray of light to delay raising temperature inside of Control Cubicle.
The gap between control cubicle and cover is 10mm.
Air Vent
To protect control part from humidity by temperature fluctuation, Vents are on left and right side
covered with Outer Cover.
