13.13. VD Wiring Diagram

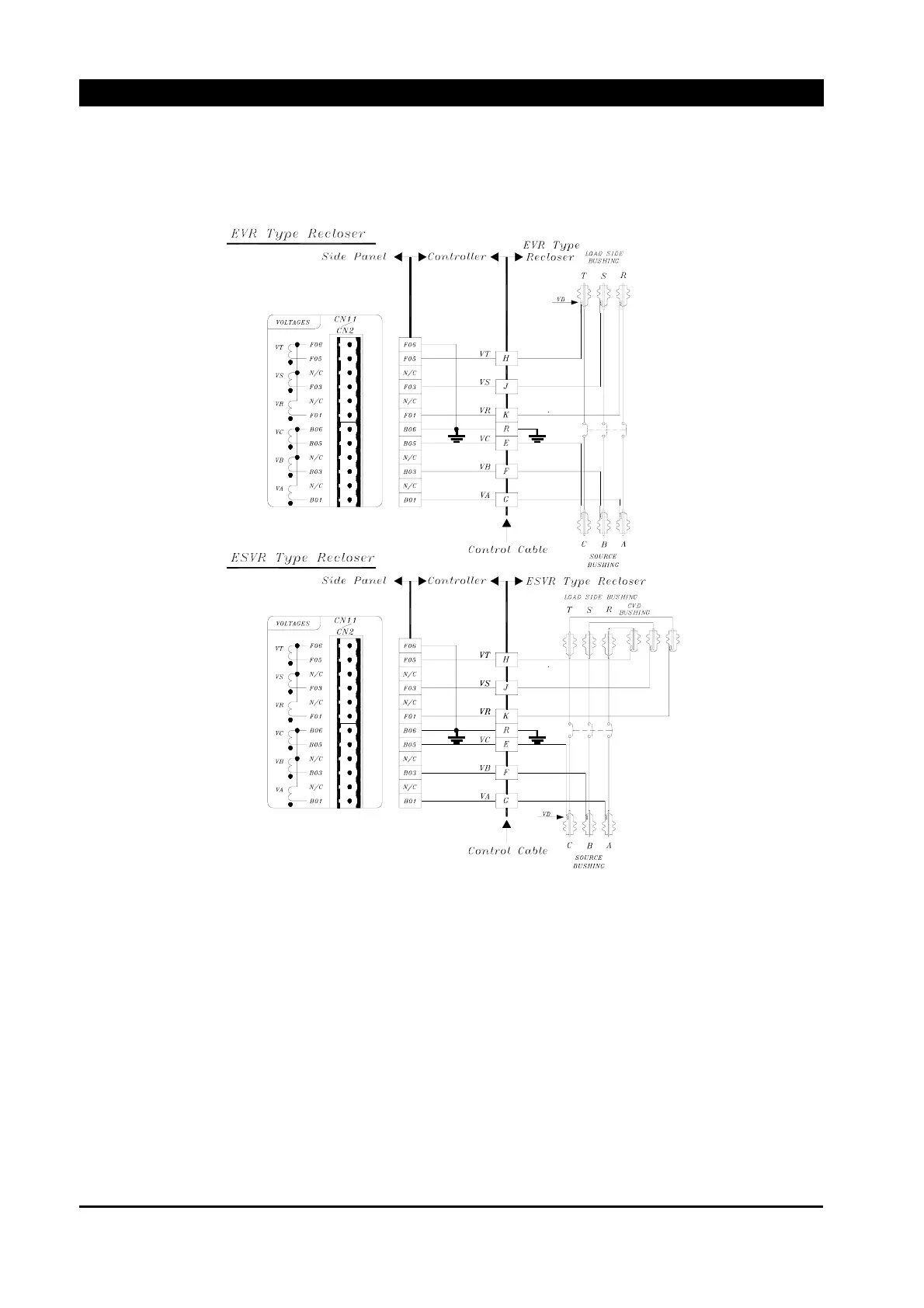

Figure 13-12. VD Wiring Diagram
y VD(CVD(Capacitor Voltage Divider) or RVD(Resistance Voltage Divider)) measures
Voltage with using Capacitor or Resistance installed in each Bushing of Recloser.
y VD Type and VT Type are not exchangeable.
y Current Inputs and Voltage Inputs should be the same phase. If CT Inputs changed Phase
rotation, Voltage Inputs phase should be re-arranged.
y Option CVD 15㎸, 27㎸, 38㎸ Class
y Option RVD 15㎸, 27㎸ Class
