13.10. EVRC2A Wiring Diagram - VT Type

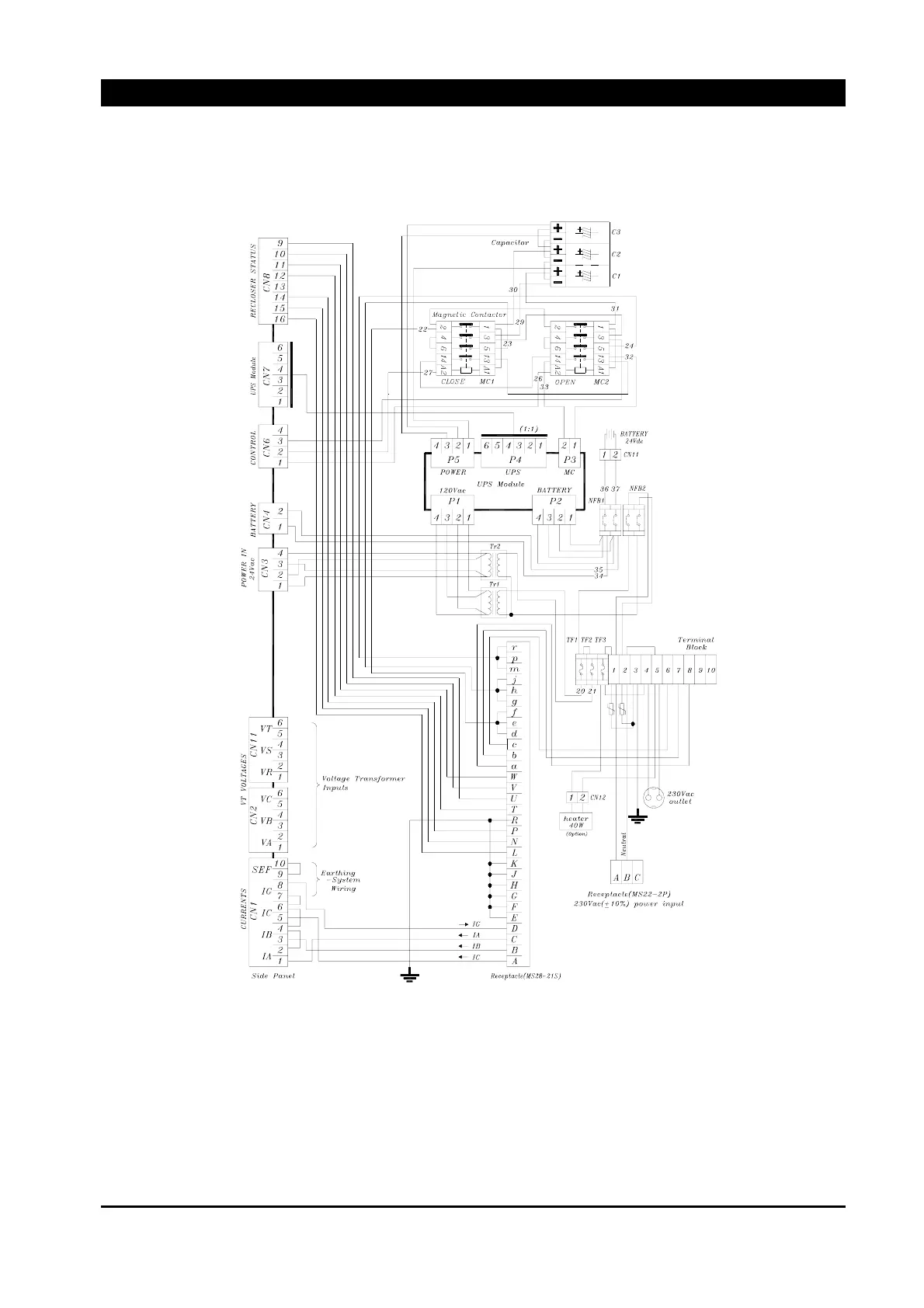

Figure 13-9. EVRC2A Wiring Diagram - VT Type
y “Figure 13-9. EVRC2A Wiring Diagram - VT Type” is wiring diagram of VT type of which
Voltage Input is optional.
y CN2 is Voltage Input Connector. For wiring, refer to “Figure 13-13. VT Wiring Diagram”
y VD type and VT type are not exchangeable. VT type is standard and VD type is optional.
