13.9. EVRC2A Wiring Diagram – VD Type

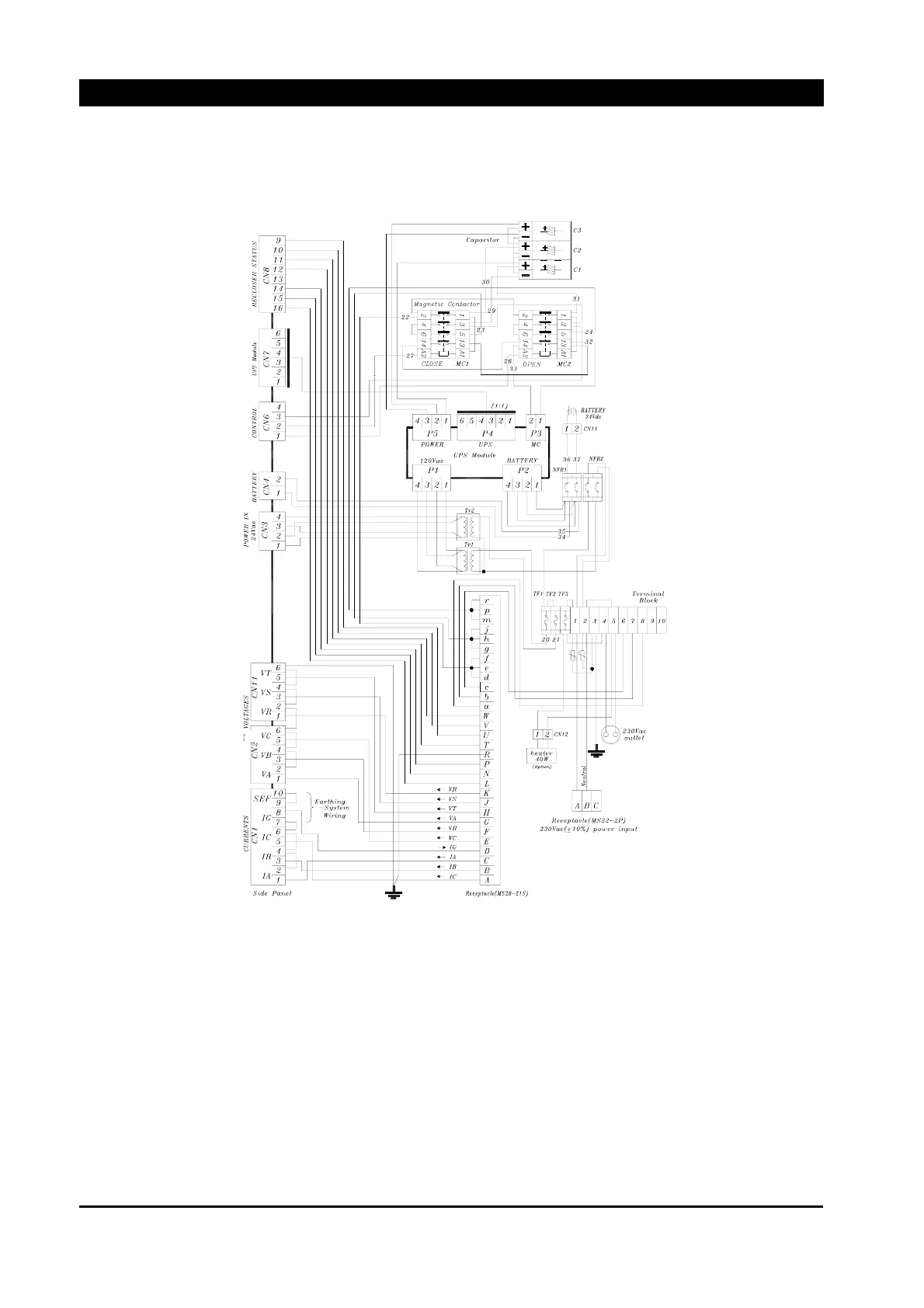

Figure 13-8. EVRC2A Wiring Diagram - VD Type
y Wiring diagram of EVRC2A standard.
y CN1 has different system wirings depending on User system. In “Figure 13-8. EVRC2A
Wiring Diagram - VD Type”, CN1 is marked as Earthing System. For non-Earthing system,
refer to “Figure 13-11. Current Inputs Wiring Diagram”
y CN2 is Voltage Input Connector. “Figure 13-8. EVRC2A Wiring Diagram - VD Type” is
VD(CVD(Capacitor Voltage Divider) or RVD(Resistance Voltage Divider)) type and
“Figure 13-9. EVRC2A Wiring Diagram - VT Type” is VT type.
y VT type is standard and VD type is for optional. VD type and VT type are not exchangeable.
