13.6. Mount Accessories Dimensions

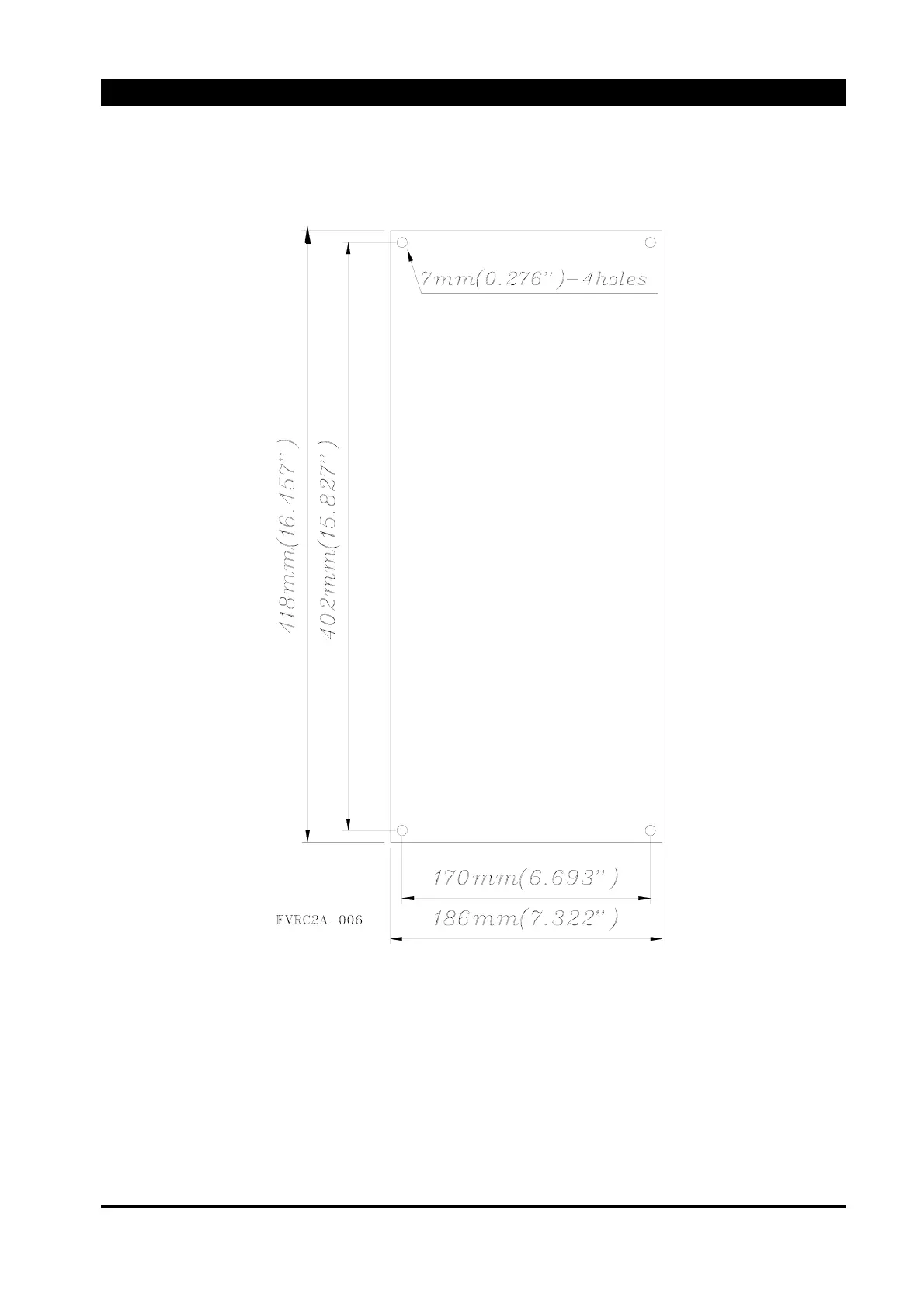

Figure 13-6. Mount Accessories Dimensions
y Shows base plate measurements that can be attached in User Available Space.
y On Base plate, 10㎜/M6 Nut is used to fix the base plate.
y Available space for height of base plate is from 101.6㎜ (4”) to 177.8㎜ (7”)
