3.1. Construction
Panel consists of 8 sections as below;
y Operation section
y Local control section
y Fault indication section
y Voltage elements section
y Sequence status section
y System diagnostic section
y Battery test section
y Menu control section
3.1.1. Operation Section
OPEN
Pressing OPEN push-button sends a trip signal to the Recloser.
CLOSE
Pressing CLOSE push-button sends a close signal to the Recloser.
Units operating with firmware version 2.18 or later have a feature of Close Time Delay. The Close
Time Delay allows a delay of 0.00 to 600.00 seconds after pressing the close push-button before
closing the recloser.
POSITION LED
Indicates the position of the Recloser. Position indicator is based on the Recloser 52a contacts.

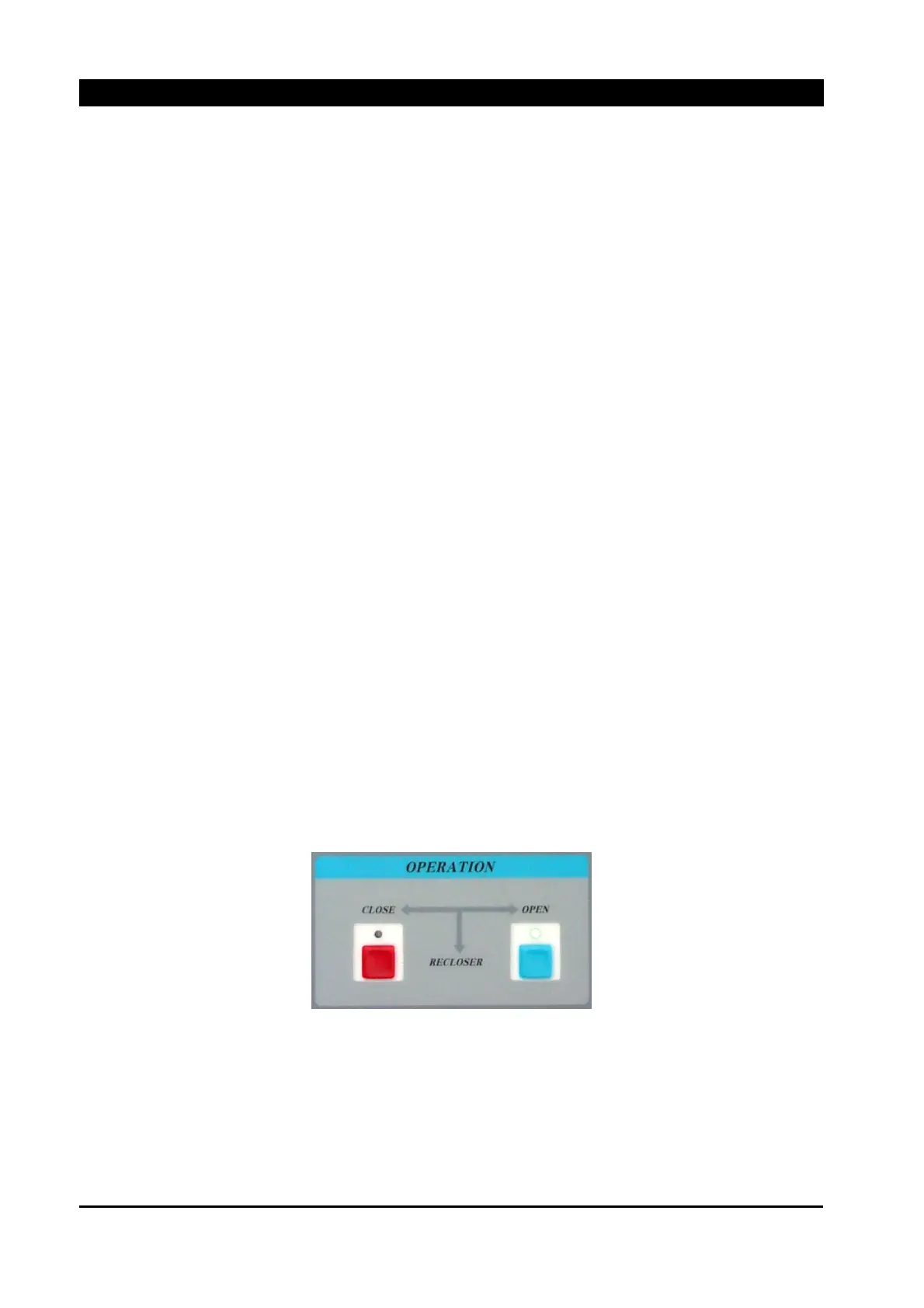

Figure 3-2. Operation Section
