13.36.2. TYPE2 Sensor
It is used for Recloser manufactured after JULY, 2005.
Table 13-12. EVR Pressure Sensor
Description Pin Function
1) Sensor Power is delivered from
Pin P(+9~30Vdc) and N(-)
2) Sensor Output is Pin L(+) and N(-)
L Pressure Sensor Output
N Pressure Sensor Power AGND
P Pressure Sensor Power 12Vdc

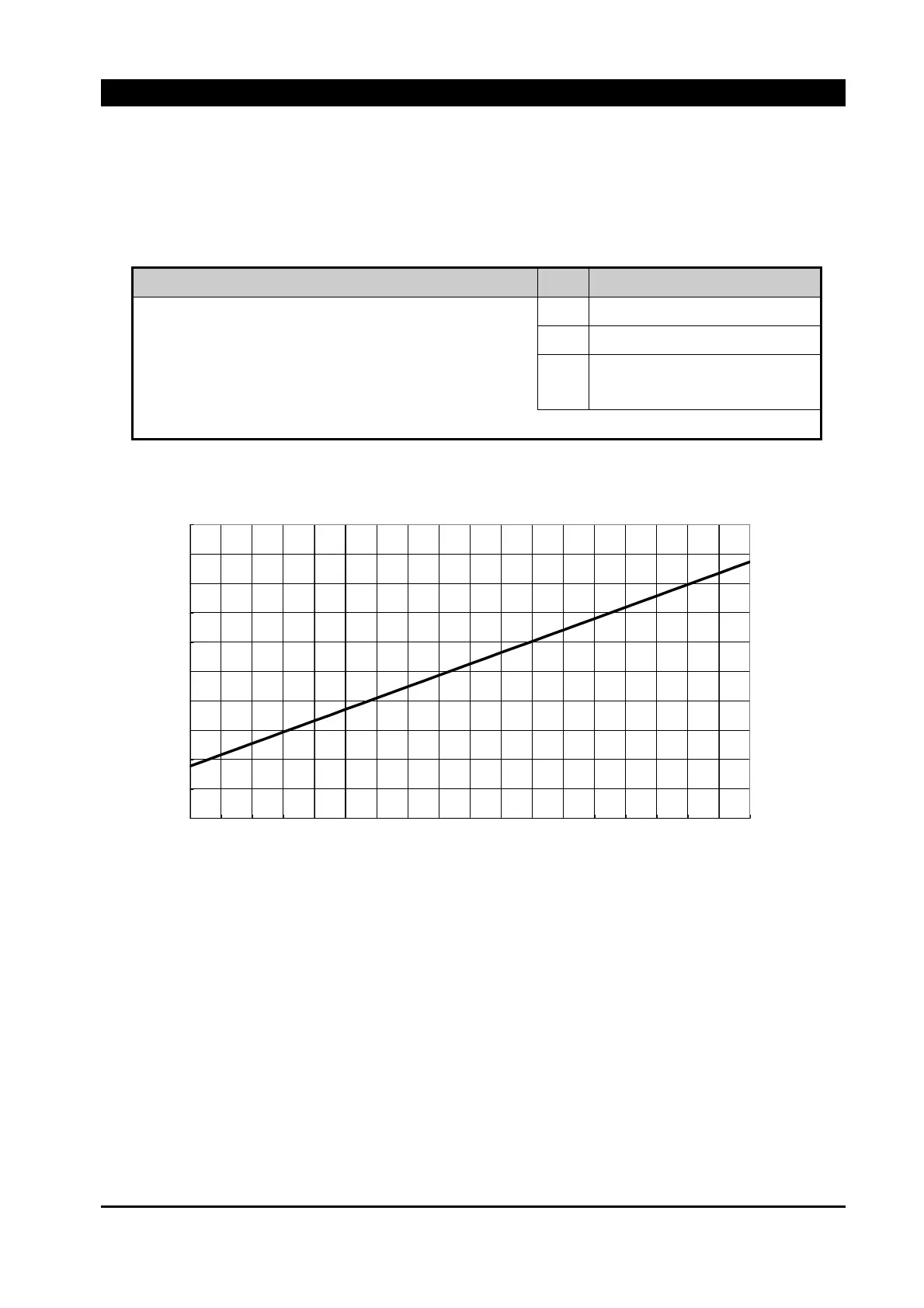

Figure 13-36. Pressure Changes depending on Sensor Output voltage
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
-0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
Pressure (bar)
Output voltage(Vdc)
