Program 1
A function installed in Program1 is operated when Program1 LED is On.
Depending on user’s request, Manufacturer sets a function in Program1.
Program 2
A function installed in Program2 is operated when Program2 LED is On.
Depending on user’s request, Manufacturer sets a function in Program2.
Hot Line Tag
When Hot Line Tag LED is on, the Hot Line Tag function is enabled.
3.1.3. Fault Indication Section
Indicates current on the phase or neutral lines is above the minimum pickup setting as programmed
in any of the EVRC2A over-current elements.
y Phase Instantaneous over-current Elements
y Phase Time over-current Elements
y Phase Definite Time High Current Lockout Element
y Ground Instantaneous over-current Elements
y Ground Time over-current Elements
y Ground Definite Time High Current Lockout Element
y Sensitive Ground Time Over-current Elements
y Negative Instantaneous over-current Elements
y Negative Time over-current Elements
y Negative Definite Time High Current Lockout Element
y Phase, Neutral, Ground, Sensitive Ground, and Negative Sequence Directional Control

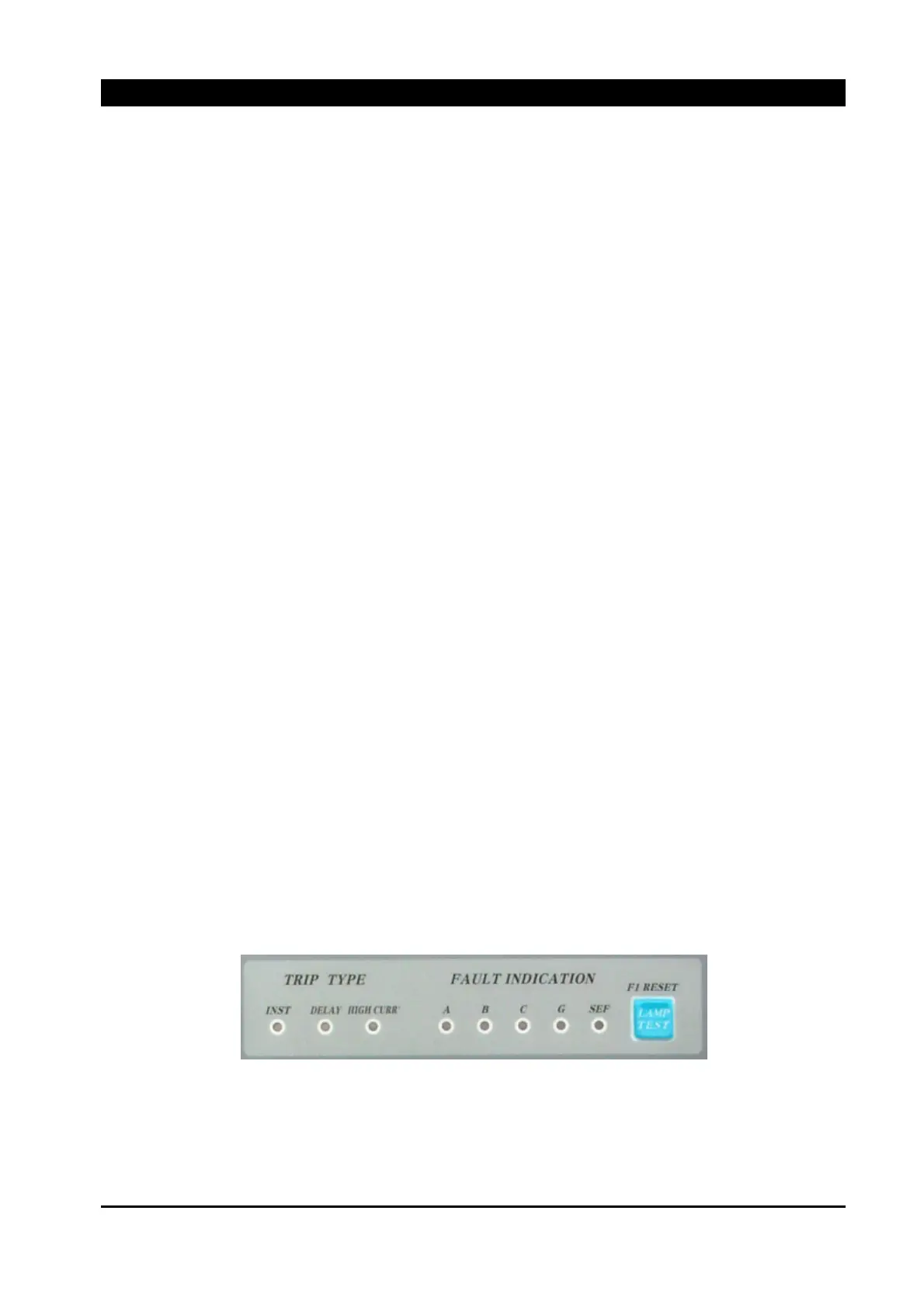

Figure 3-4. Fault Indication Section
