The voltage sensing type to the load side can be checked on the setting of "Install
Type" in the "LINE VL SENSING" menu.
PRIMARY SETTING / SYSTEM SETUP / SYSTEM POWER / Phase Combination
Range
abc, cab, bca, acb, bac, cba
Default
abc
Step
~
Put real phase of power system to a bushing or a terminal of a control
device. As example, if setting value is cab, it means that bushing A is
connected with phase C and bushing B is connected with phase A.
NOTE:
The “Phase Combination” setting will be shown from version 6.04 of EVRC2A-
N6,NT. In order to get the details relevant to the connection for EVRC2A-N6,NT
from version 6.04, refer the following figure and table.

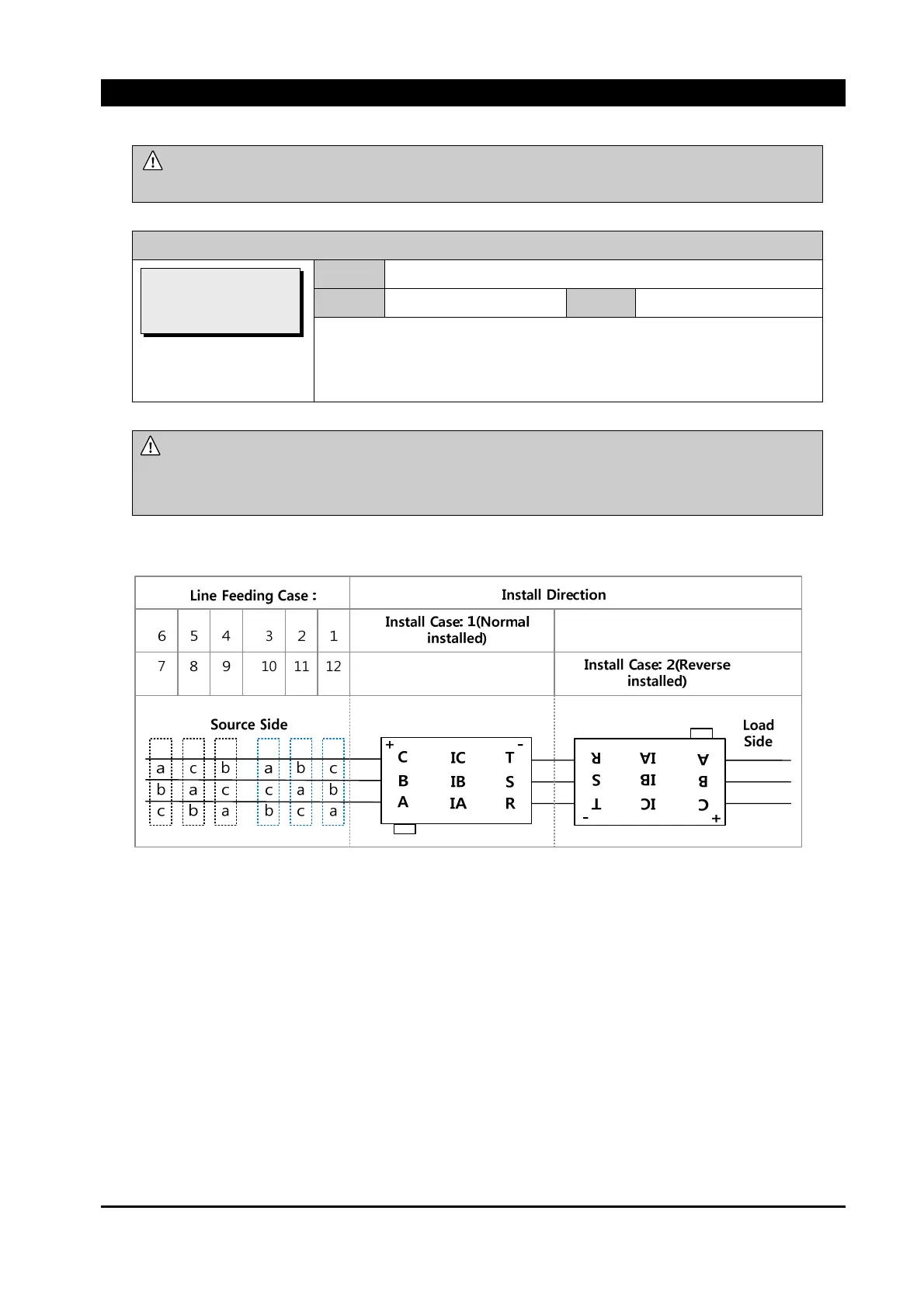

Figure 6-1. Phase Connection
[SYSTEM POWER]
>Phase Rotation: ABC
>Install Dir’: NOR
>Phase Combi’: abc
To Next Page
