Port Configuration
3-93
3

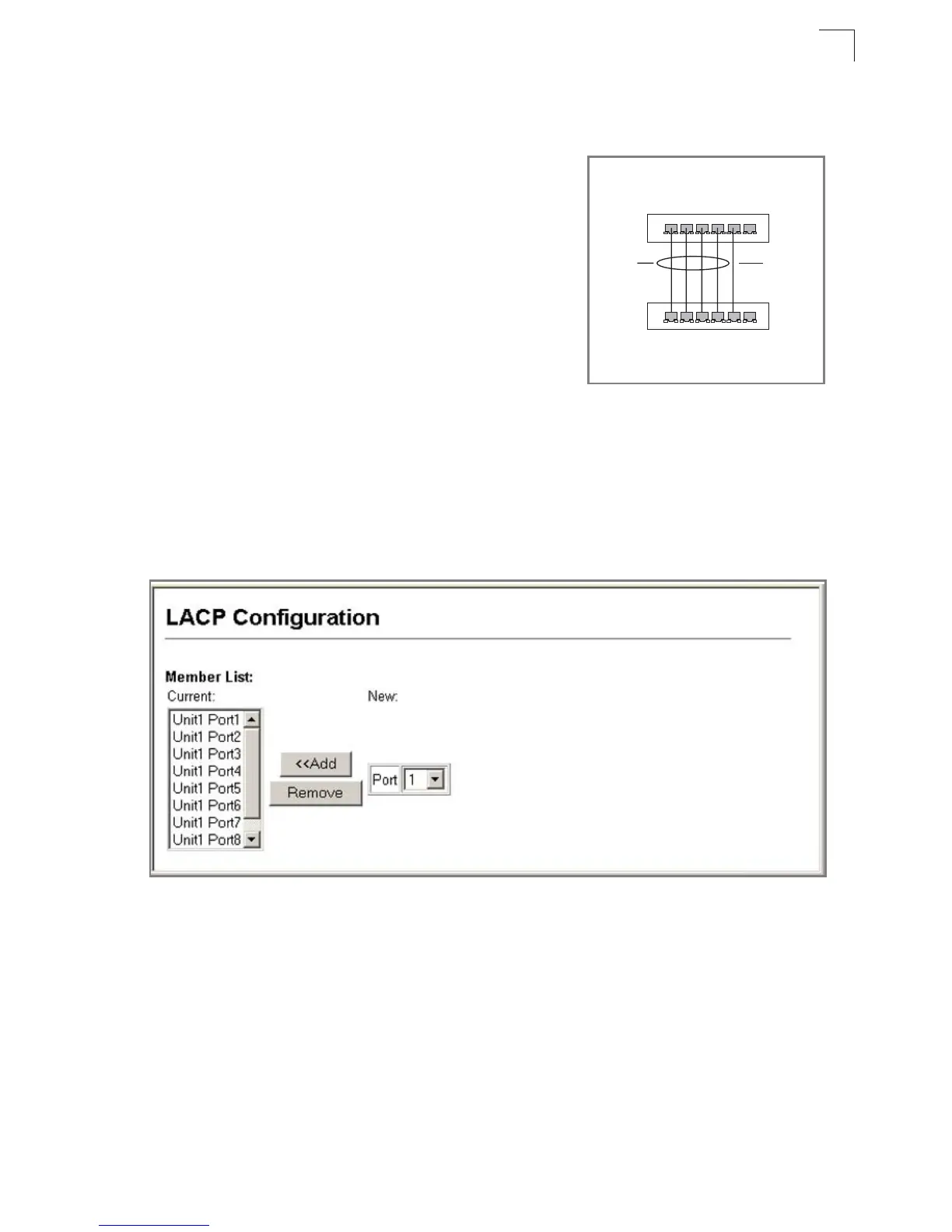

Enabling LACP on Selected Ports
Command Usage
• To avoid creating a loop in the network, be sure you
enable LACP before connecting the ports, and also
disconnect the ports before disabling LACP.
• If the target switch has also enabled LACP on the
connected ports, the trunk will be activated
automatically.
• A trunk formed with another switch using LACP will
automatically be assigned the next available trunk
ID.
• If more than four ports attached to the same target
switch have LACP enabled, the additional ports will
be placed in standby mode, and will only be enabled if one of the active links fails.
• All ports on both ends of an LACP trunk must be configured for full duplex, either
by forced mode or auto-negotiation.
Web – Click Port, LACP, Configuration. Select any of the switch ports from the
scroll-down port list and click Add. After you have completed adding ports to the
member list, click Apply.
Figure 3-57. LACP Port Configuration
active
links
}
}
dynamically
enabled
configured
members
backup
link
