VLAN Configuration
3-145
3

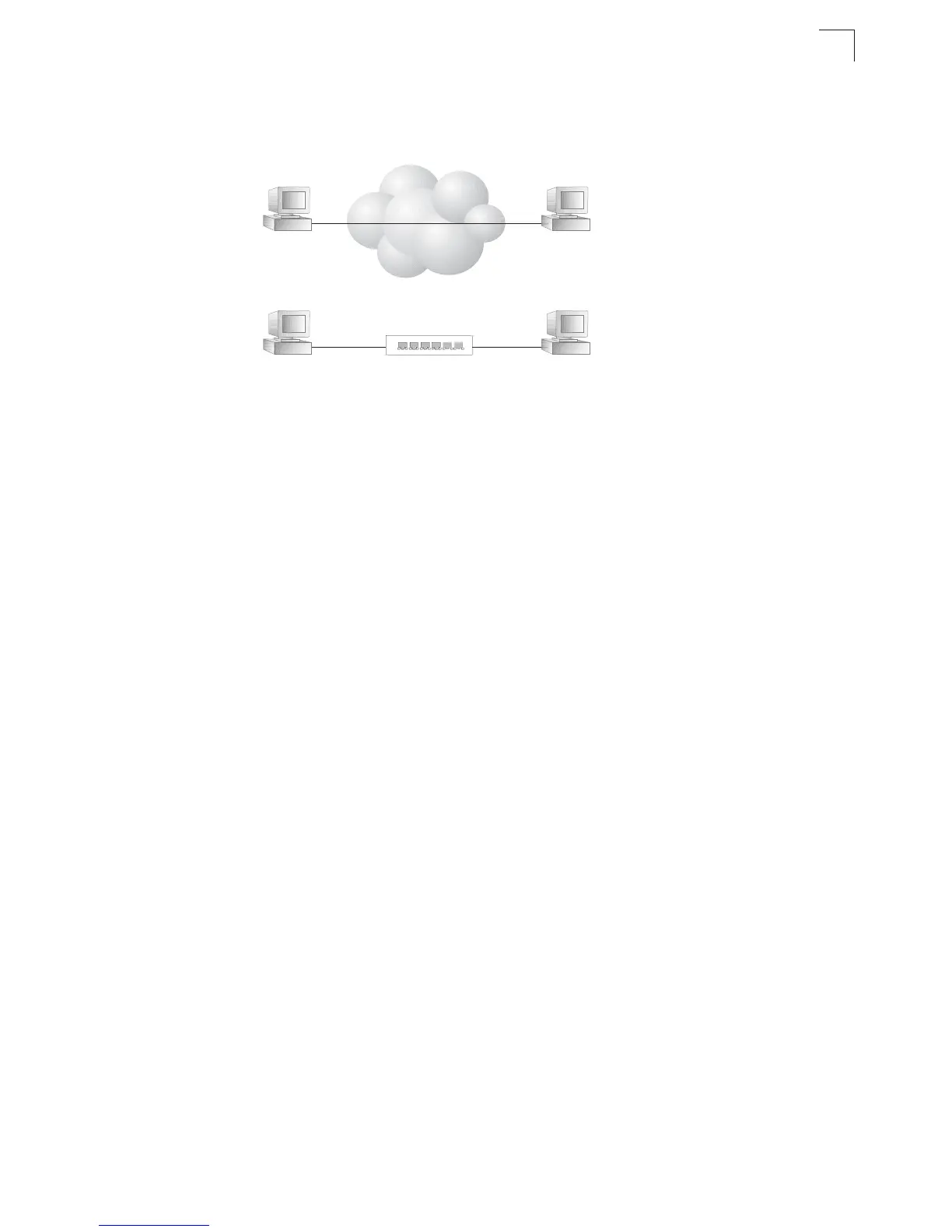

Note: VLAN-tagged frames can pass through VLAN-aware or VLAN-unaware network
interconnection devices, but the VLAN tags should be stripped off before passing
it on to any end-node host that does not support VLAN tagging.
VLAN Classification – When the switch receives a frame, it classifies the frame in
one of two ways. If the frame is untagged, the switch assigns the frame to an
associated VLAN (based on the default VLAN ID of the receiving port). But if the
frame is tagged, the switch uses the tagged VLAN ID to identify the port broadcast
domain of the frame.
Port Overlapping – Port overlapping can be used to allow access to commonly
shared network resources among different VLAN groups, such as file servers or
printers. Note that if you implement VLANs which do not overlap, but still need to
communicate, you can connect them by enabled routing on this switch.
Untagged VLANs – Untagged (or static) VLANs are typically used to reduce
broadcast traffic and to increase security. A group of network users assigned to a
VLAN form a broadcast domain that is separate from other VLANs configured on the
switch. Packets are forwarded only between ports that are designated for the same
VLAN. Untagged VLANs can be used to manually isolate user groups or subnets.
However, you should use IEEE 802.3 tagged VLANs with GVRP whenever possible
to fully automate VLAN registration.
Automatic VLAN Registration – GVRP (GARP VLAN Registration Protocol)
defines a system whereby the switch can automatically learn the VLANs to which
each end station should be assigned. If an end station (or its network adapter)
supports the IEEE 802.1Q VLAN protocol, it can be configured to broadcast a
message to your network indicating the VLAN groups it wants to join. When this
switch receives these messages, it will automatically place the receiving port in the
specified VLANs, and then forward the message to all other ports. When the
VA
VA: VLAN Aware
VU: VLAN Unaware
VA
tagged frames
VA VUVA
tagged
frames
untagged
frames
