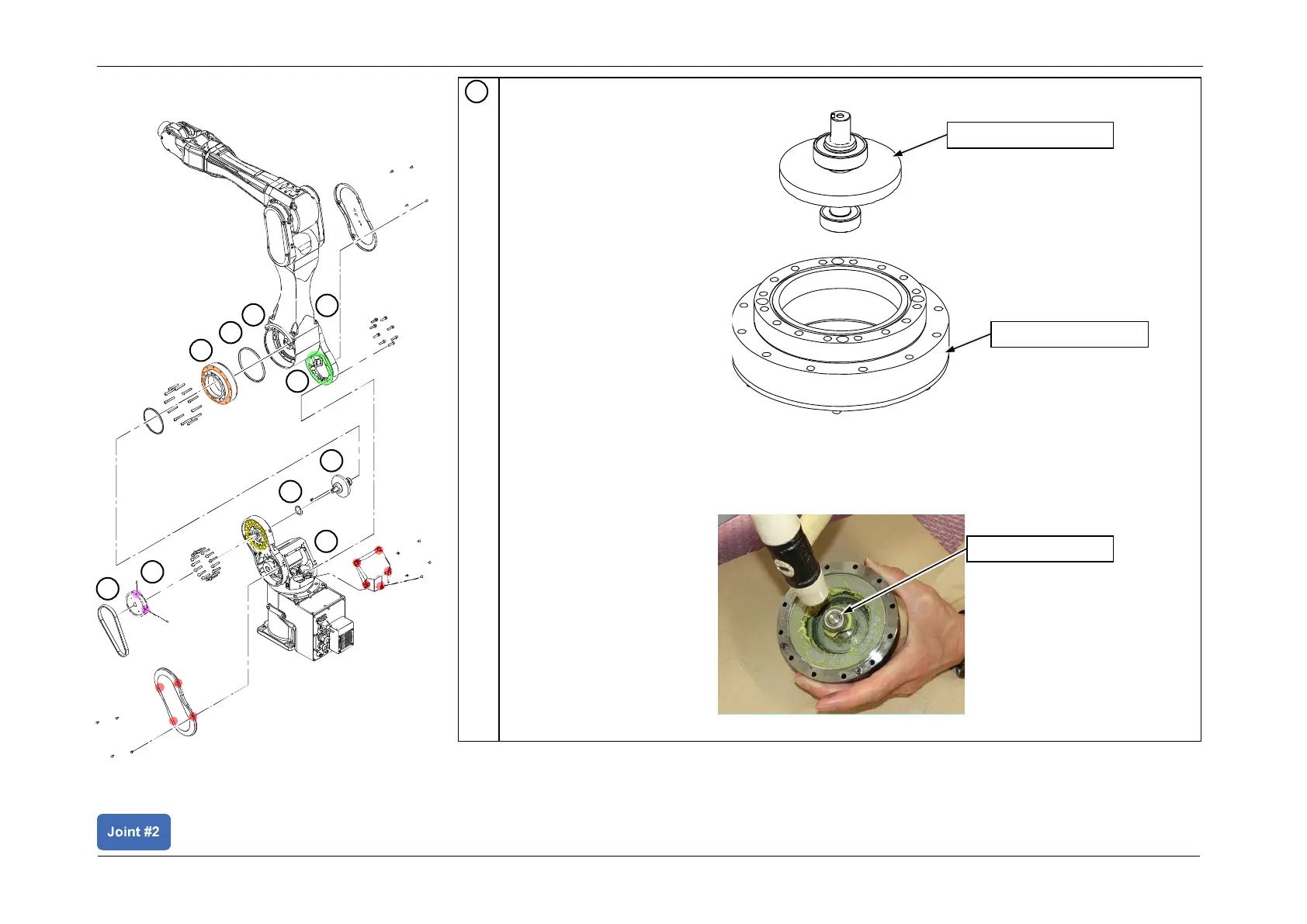

Remove the Wave Generator unit.
POINT
Turn the Reduction Gear Unit with the Wave Generator unit built in upside down.
Remove the Wave Generator unit by tapping it lightly near the center axis with a plastic
hammer.
11
Wave Generator
Reduction Gear Unit
Wave Generator unit
2
4
6
7
5
8
9
10
11
12
Removing the Reduction Gear
