Epson C8-B - Brake Wire, LED Wire

C8-B/C12-B Service Manual Block Diagram/Wiring Diagram Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 4-5 Rev.1

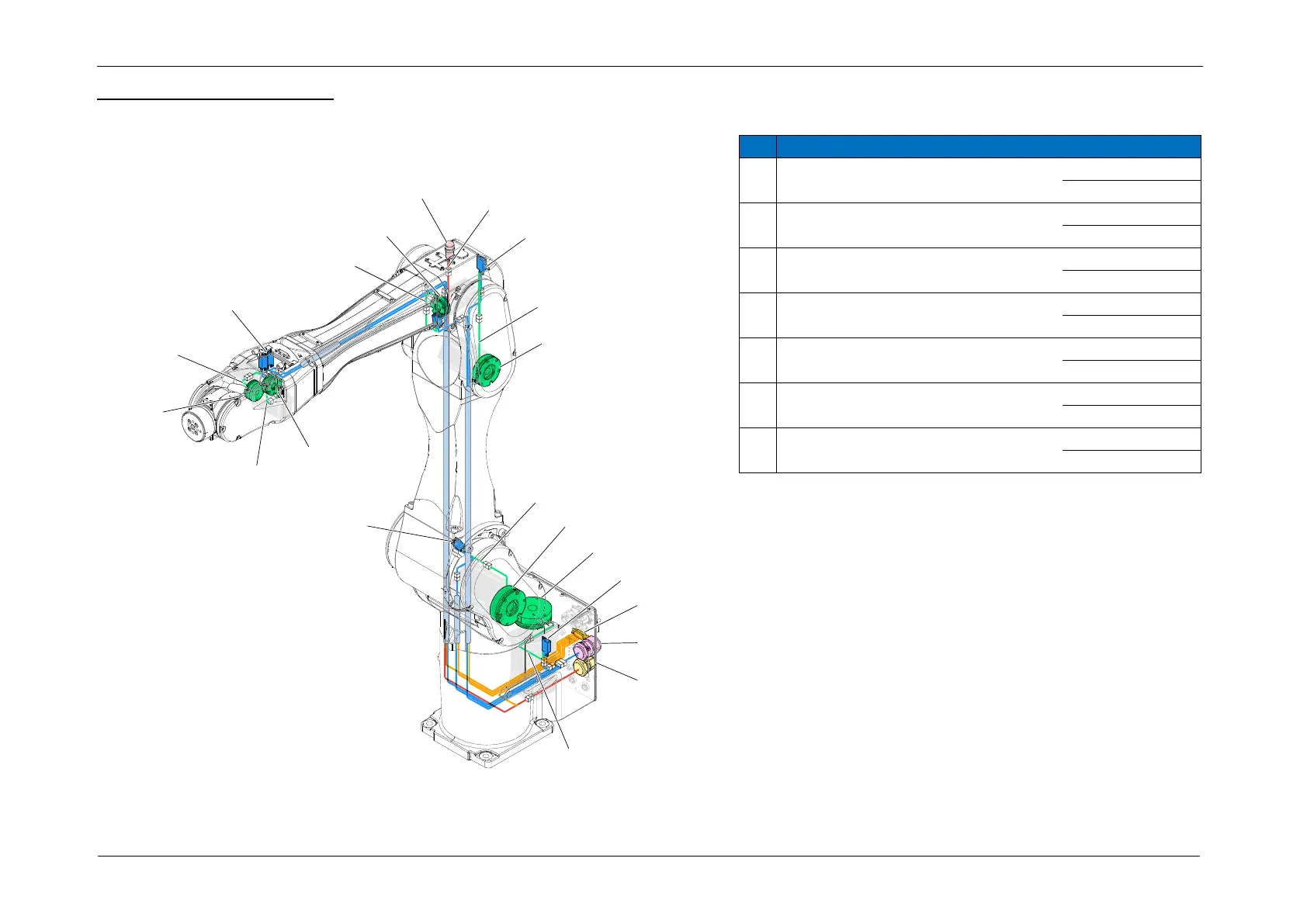

4.2.3 Brake Wire, LED Wire
No.
Connection
(1)
J1 Brake - CN410 - Brake Power Supply - CN411
- B-release
- CN202 - M/C Power
(2)
J2 Brake - CN420 - Brake Power Supply - CN421
- B-release
- CN202 - M/C Power
(3)
J3 Brake - CN430 - Brake Power Supply - CN431
- B-release
- CN202 - M/C Power
(4)
J4 Brake - CN440 - Brake Power Supply - CN441
- B-release
- CN202 - M/C Power
(5)
J5 Brake - CN450 - Brake Power Supply - CN451
- B-release
- CN202 - M/C Power
(6)
J6 Brake - CN460 - Brake Power Supply - CN461
- B-release
- CN202 - M/C Power
(7)
LED - CN3L0 -
- B-release
- CN3L1 - M/C Signal
(7)
(1)
(2)
(3)
(5)
(6)
(4)
LED Lamp
Joint #3 Brake
Joint #5
Brake
Joint #6 Brake
Joint #2 Brake
Joint #4 Brake
Joint #1 Brake
Brake Power Supply
Brake Power Supply
Brake Power Supply
Brake Power
Supply
M/C Power
M/C Signal
B-release
