C8-B/C12-B Service Manual Block Diagram/Wiring Diagram Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 4-6 Rev.1

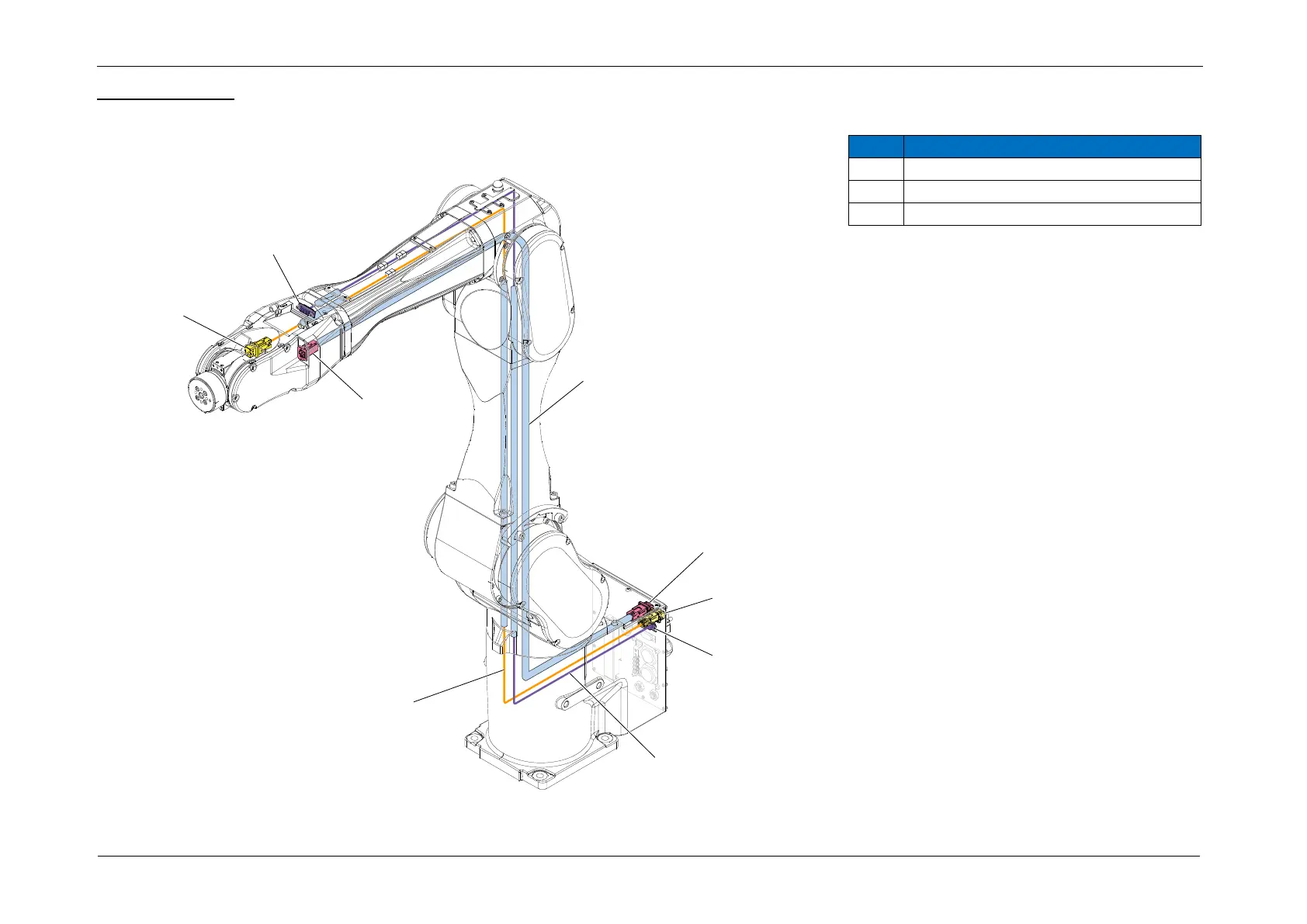

4.2.4 User Plate
No.
Connection
(1)
F-sensor - CN592 - F-sensor
(2)
D-sub 15pin - CN521 - D-sub 15pin
(3)
RJ45 - RJ45
(1)
(2)
(3)
F-sensor
F-sensor
D- sub 15pin
RJ45
RJ45
D-sub 15pin
