2.13.2 Installing the Fan

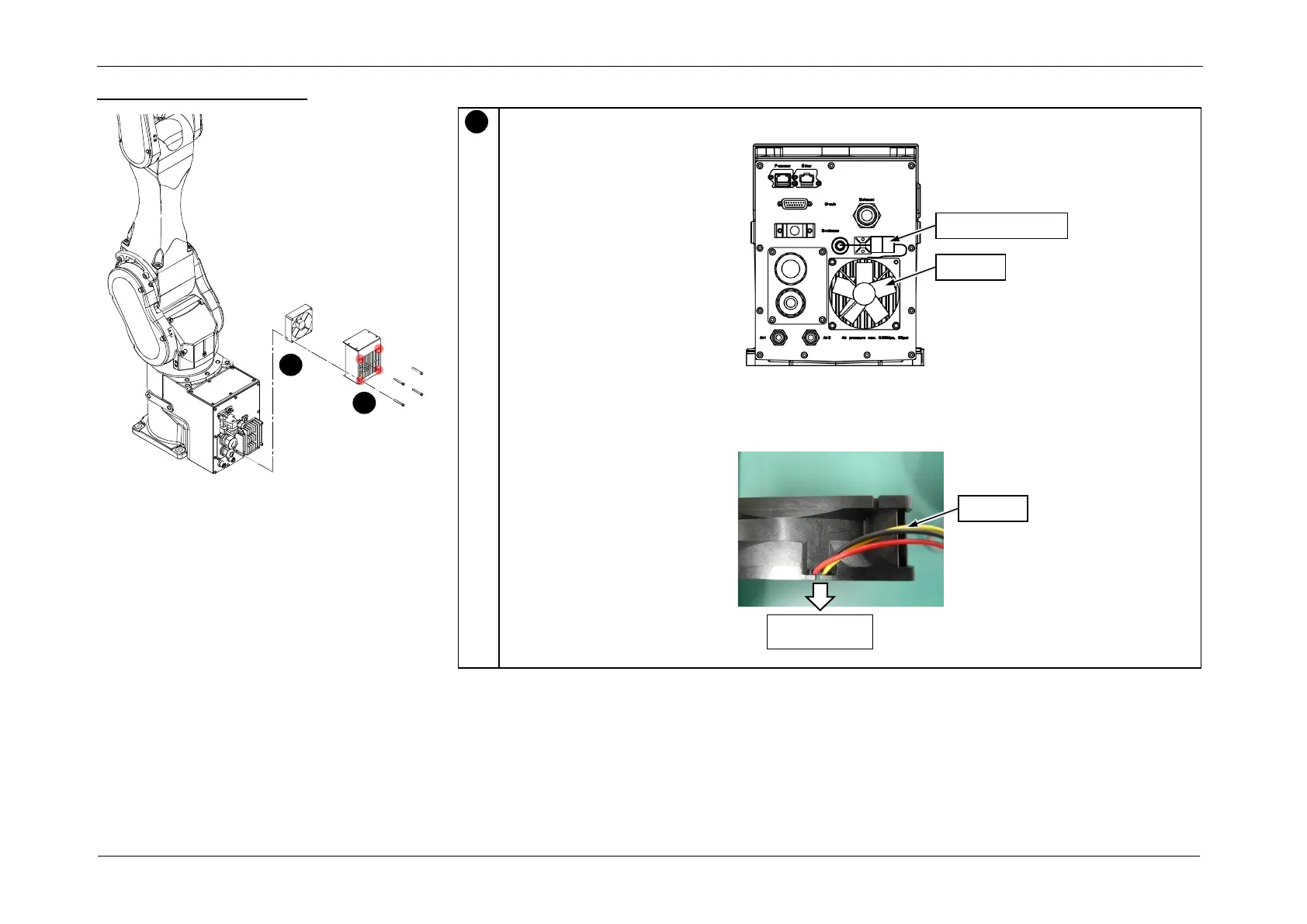

Install the fan, and connect the connector (FAN).
POINT
Ensure that the fan cables are at the top, and install so that the cables are toward the heat
sink.
1
Heat sink side
Cable
Connector (FAN)
Fan
