C8-B/C12-B Service Manual Block Diagram/Wiring Diagram Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 4-3 Rev.1

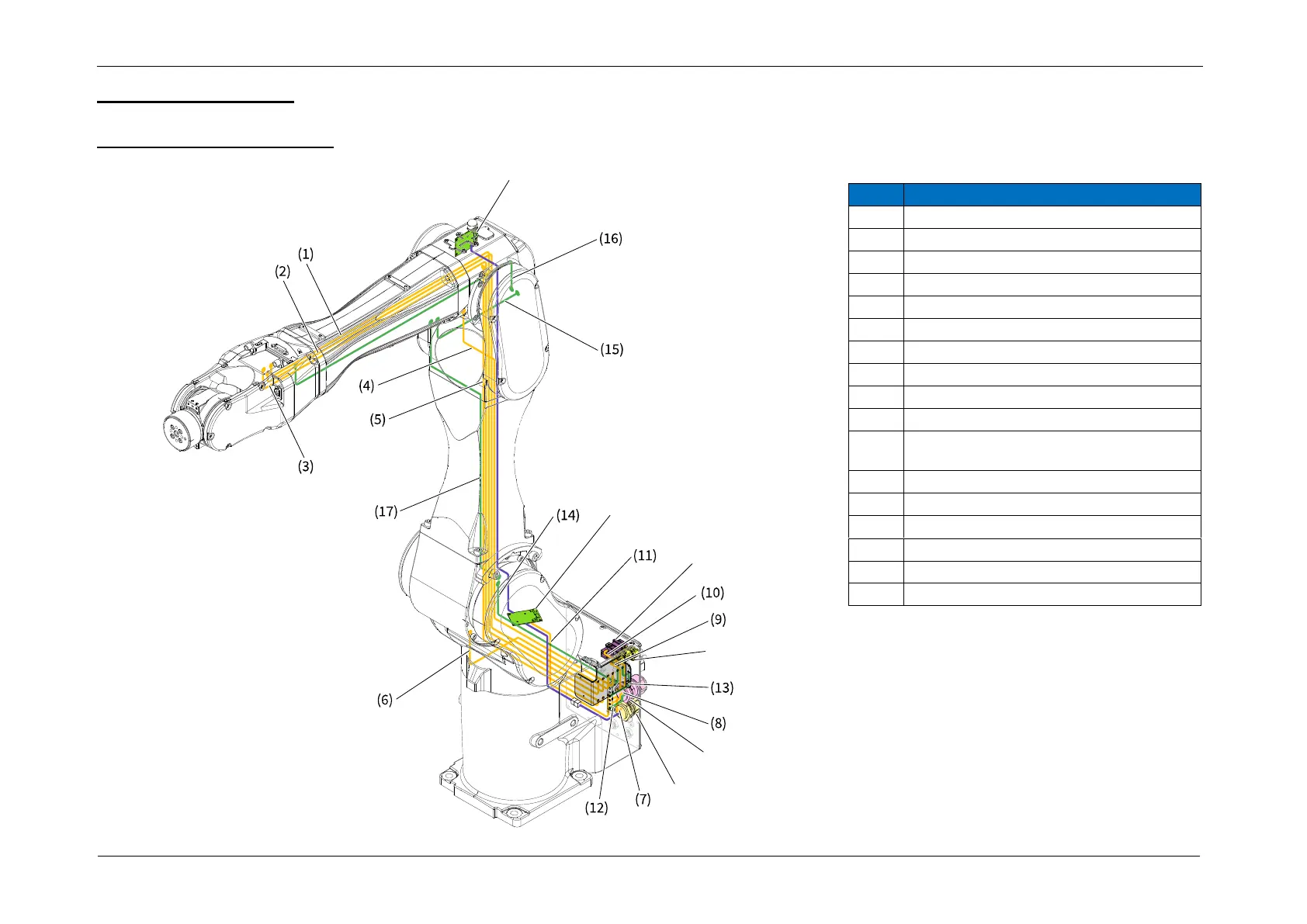

4.2 Wiring Diagram
4.2.1 Ground Wire (PE, FB)
No.
Connection
(1)
FB15 - FB8
(2)
FB14 - FB6
(3)
FB17 - FB16
(4)
FB12 - FB4
(5)
FB13 - FB5
(6)
FB11 - FB3
(7)
FB2 - M/C Signal
(8)
FB1 - M/C Power
(9)
FB9 - F-sensor
(10)
FB10 - RJ45
(11)
Gyro board 1- CN6 - Gyro board 2- CN3G0 - M/C
Signal
(12)
PE1 - M/C Power
(13)
PE2 - PE4
(14)
PE6 - PE3
(15)
PE7 - PE10
(16)
PE11 - PE9
(17)
PE8 - PE5
Gyro board 1
Gyro board 2
RJ45
F-sensor
M/C Power
M/C Signal
