Epson C8-B - Arm4 Side Cover

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-343 Rev.1

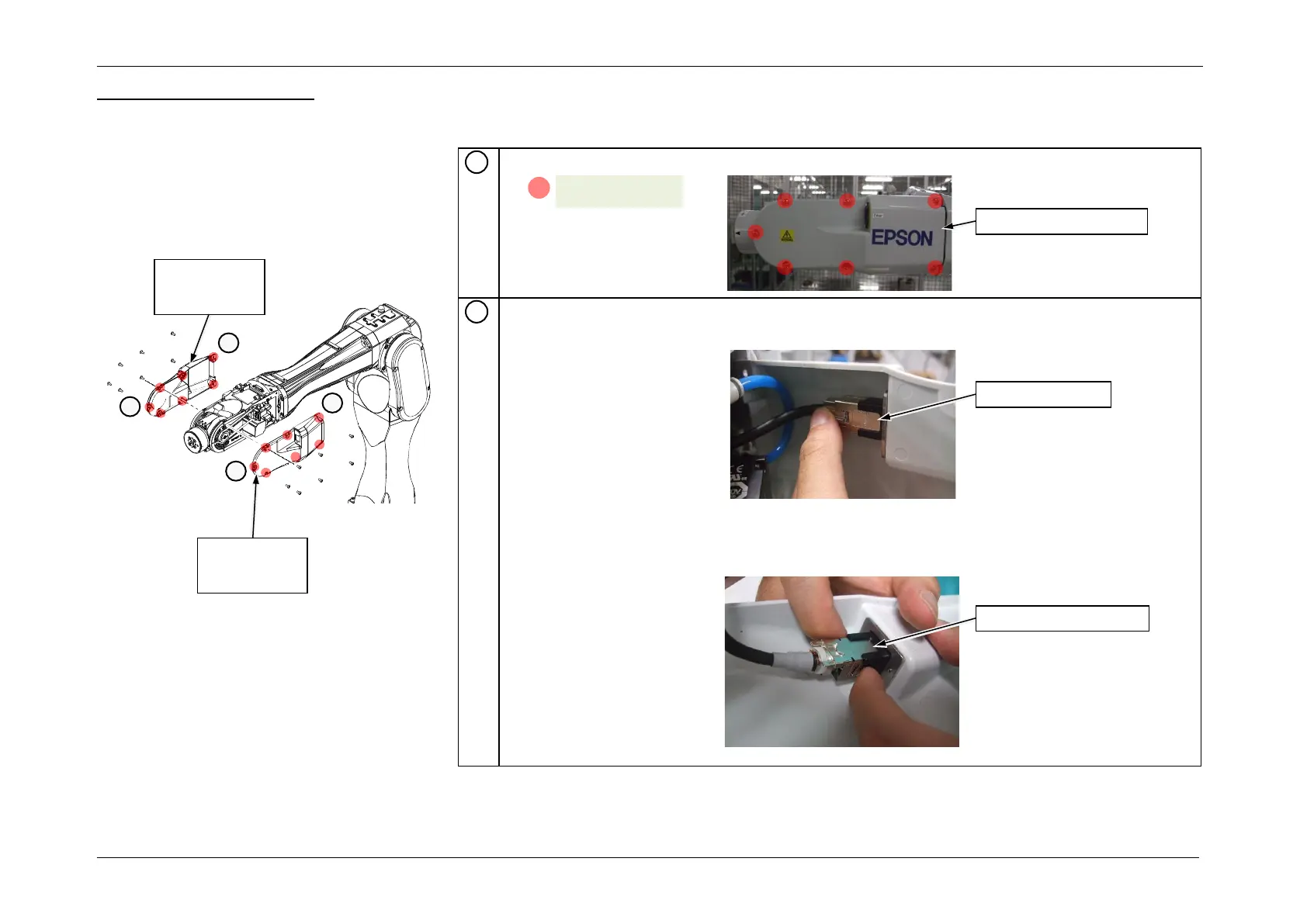

2.14.10 Arm4 Side Cover
Standard Model/Cleanroom Model
Remove the Arm4 side cover.
Disconnect the connector.
• Cover (left): RJ45 connector
• Cover (right): F-sensor connector
Open the two plastic clips of the connector on the cover and pull out the metallic
connector.
1
S06: 7-M4x10
A
Arm4 side cover
2
F-sensor connector
RJ45 connector
1
1
Arm4 side
cover (right)
Arm4 side
cover (right)
2
2
