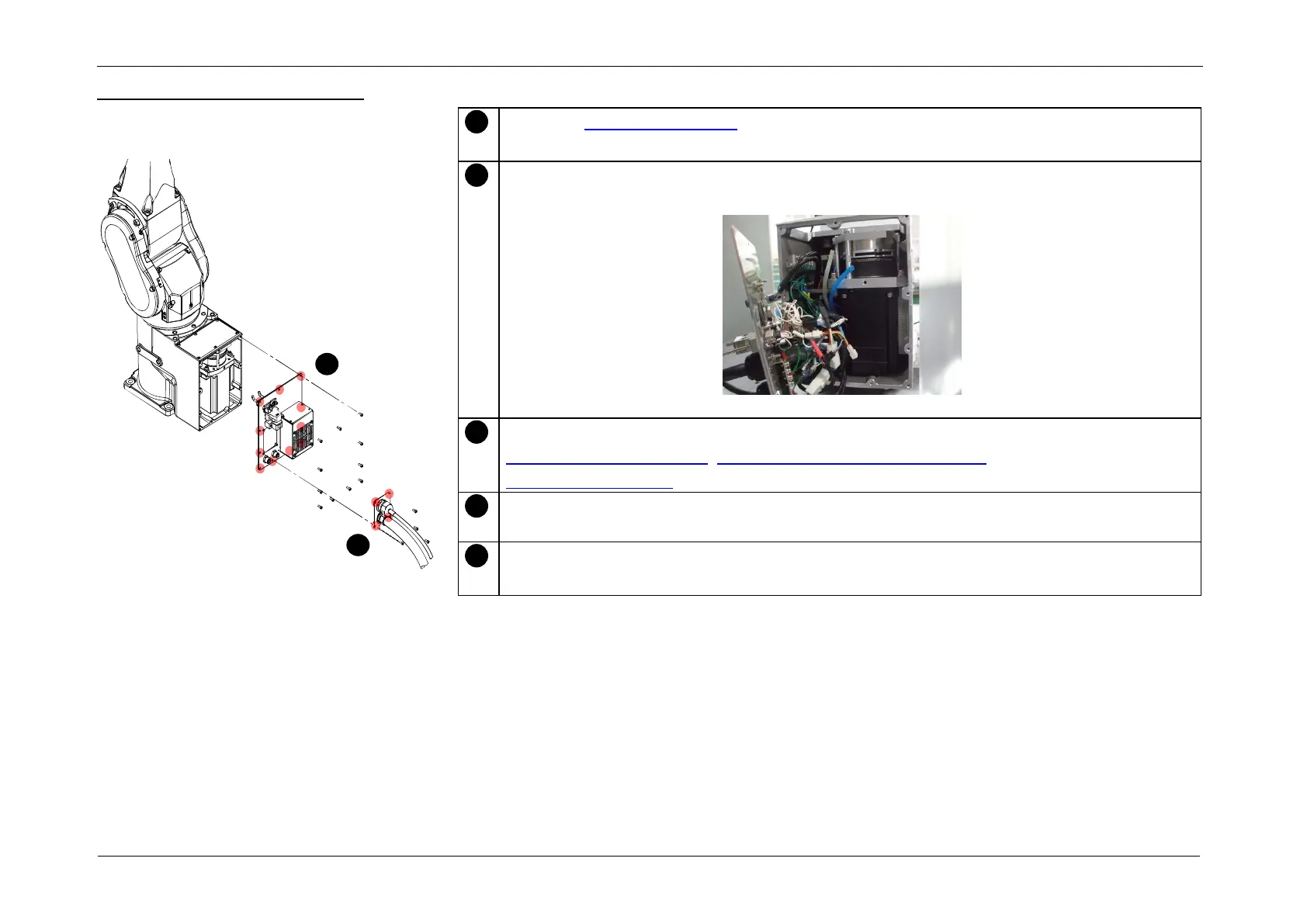

2.12.2 Installing the M/C Cable
Install the Connector sub plate.
Connect the connectors of the new M/C cable to these of the cable unit.
Connectors: CN111, CN200, CN201, CN202, CN300, CN301, CN3G0, CN312, CN3L1
Install the Connector plate.
M/C Cable Backward: C8L, M/C Cable Backward: C8XL,C12XL,
M/C Cable Downward
Connect the following connectors to the Controller.
Power cable connector, Signal cable connector
Turn ON the Controller power.
1
2
3
4
5
3
1
