Epson C8-B - Joint #3 Replacing the Reduction Gear

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-108 Rev.1

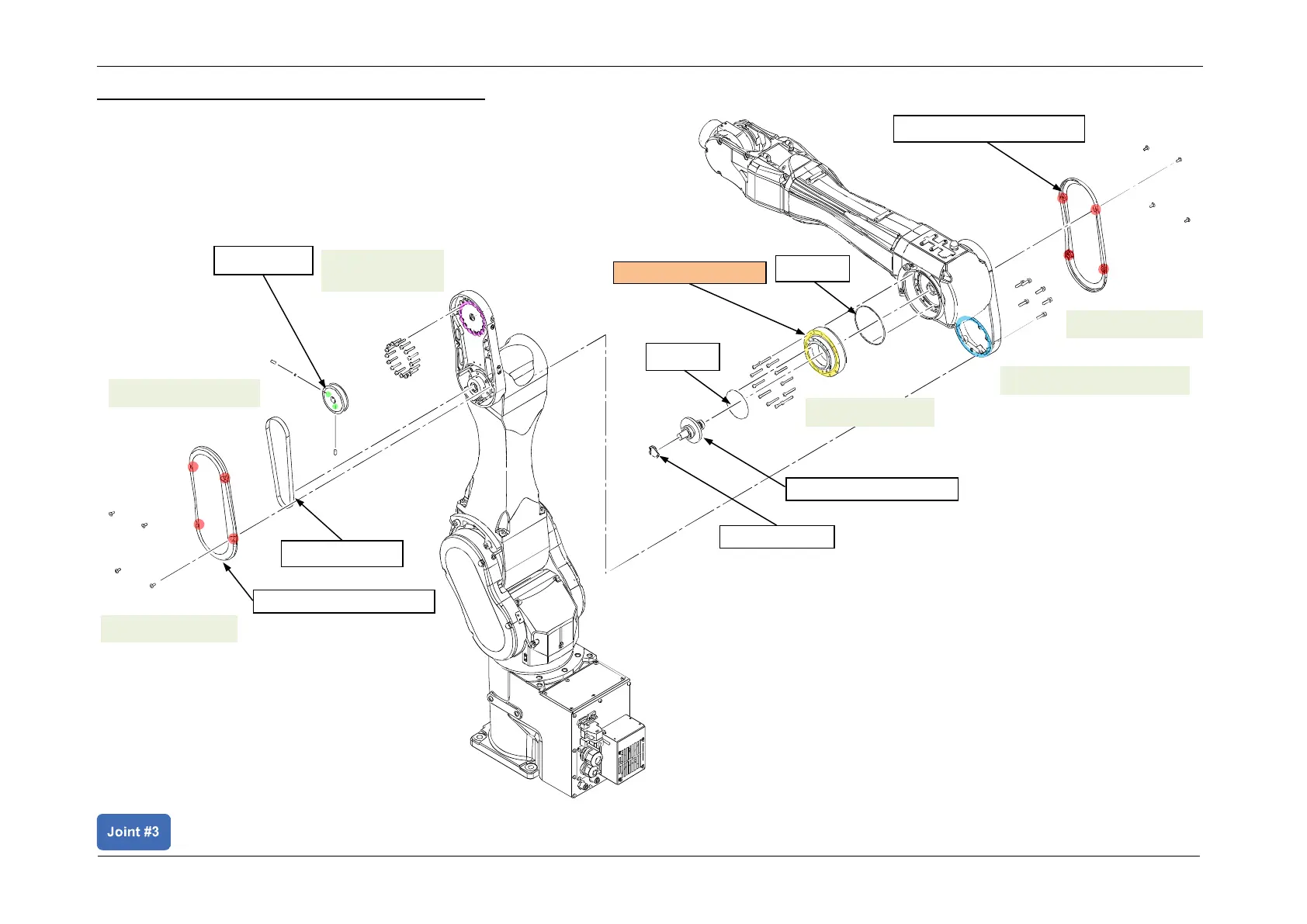

2.5.4 Joint #3 Replacing the Reduction Gear
J3 Reduction Gear
S02: 16-M4x25
and washer
J3 Timing Belt
S02: 6-M5x20 and washer
J3 Pulley 2
S05: 2-M5x12
Wave Washer
O-ring
Wave Generator Unit
O-ring
S02: 12-M4x30
S06: 4-M4x10
Arm2 Side Cover
S06: 4-M4x10
Arm2 Side Cover
