Epson C8-B - Motor Cable

C8-B/C12-B Service Manual Block Diagram/Wiring Diagram Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 4-4 Rev.1

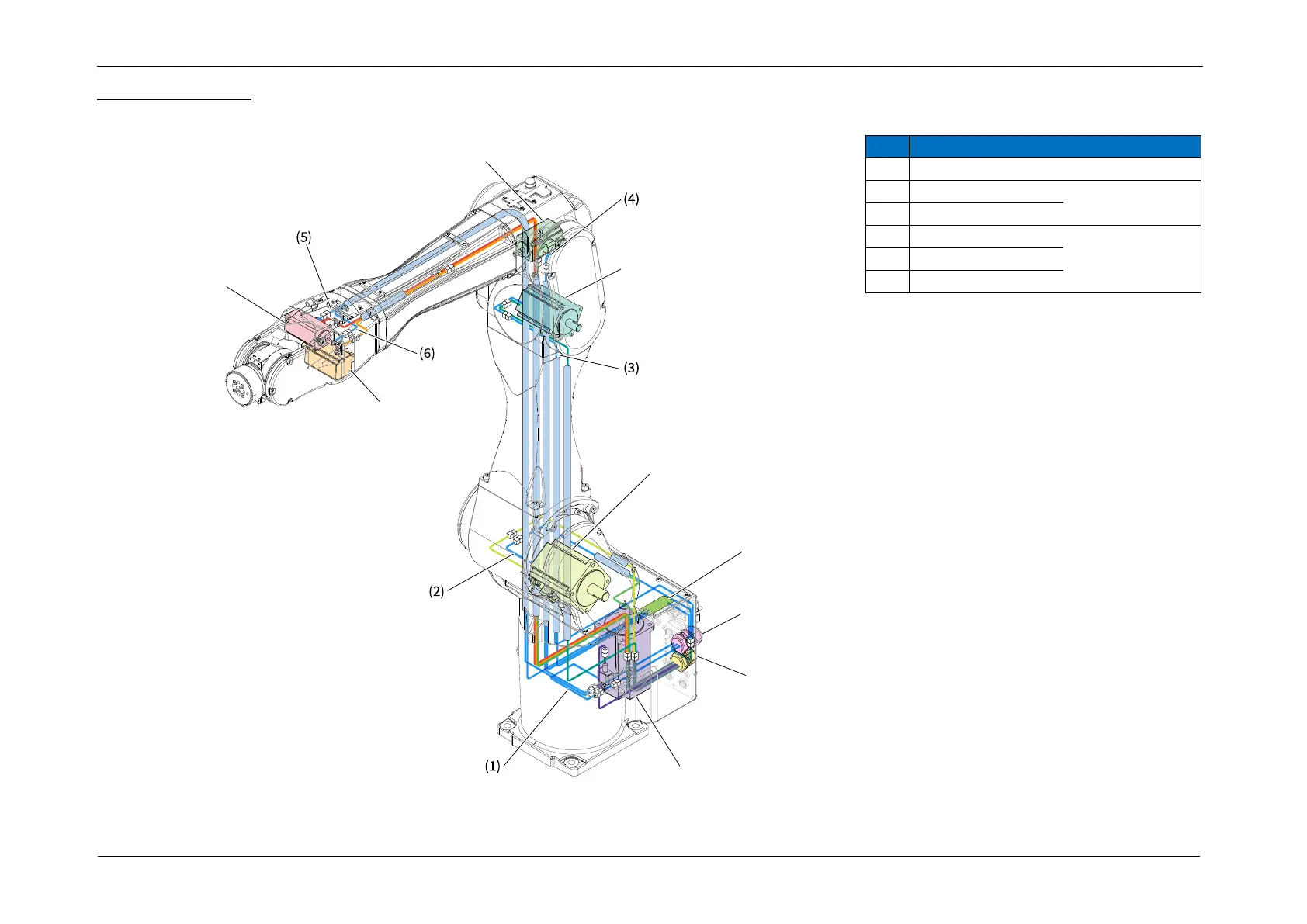

4.2.2 Motor Cable
No.
Connection
(1)
Joint #1 Motor - CN311 - CN312 - M/C Signal
(2)
Joint #2 Motor - CN321
- CN300 - M/C Signal
(3)
Joint #3 Motor - CN331
(4)
Joint #4 Motor - CN341
- CN301 - M/C Signal
(5)
Joint #5 Motor - CN351
(6)
Joint #6 Motor - CN361
Joint #4 Motor
Joint #3 Motor
Joint #5 Motor
Joint #6 Motor
Joint #2 Motor
Joint #1 Motor
DC/DC Board
M/C Power
M/C Signal
