Epson C8-B - Connector Plate (M;C Cable Backward) (C8 XL, C12 XL)

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-357 Rev.1

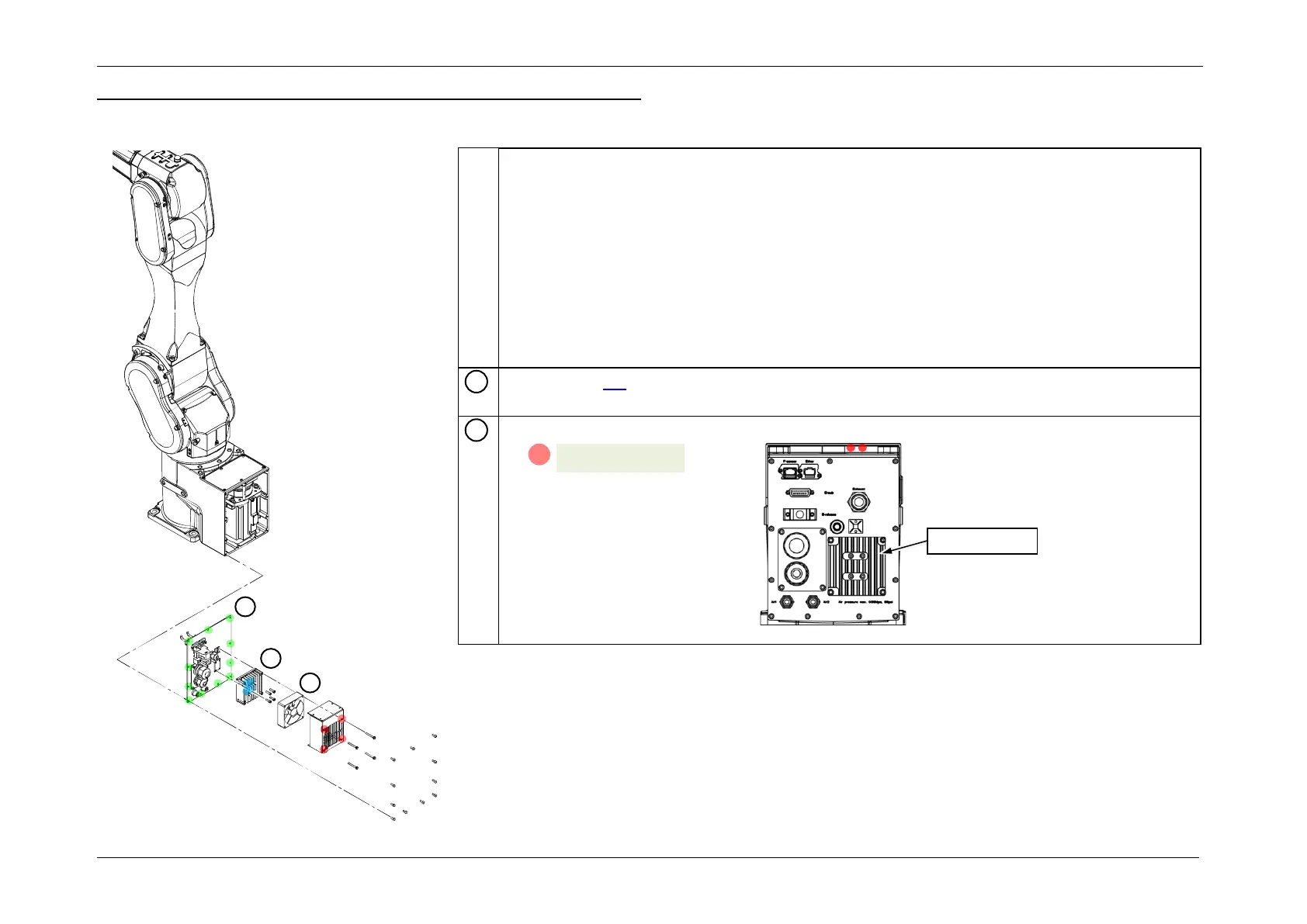

2.14.14 Connector Plate (M/C Cable Backward) (C8XL, C12XL)
Standard Model/Cleanroom Model
CAUTION
• Do not pull the Connector Plate with force. It may result in damage to the cables,
disconnection, and/or contact failure. These are extremely hazardous and may result
in electric shock and/or improper function of the robot system.
• At reassembly, check the cable arrangement when removing the Connector Plate in
order to return to a reasonable wiring arrangement.
• When installing the Connector Plate, do not nip the Rubber Gasket or cables, or bend
and push them in using excessive force. It may result in damage to the cables,
disconnection, and/or contact failure. These are extremely hazardous and may result
in electric shock and/or improper function of the robot system.
Remove the fan.
Remove the heat sink.
1
2
S01: 4-M4x15
A
Heat sink
3
2
1
