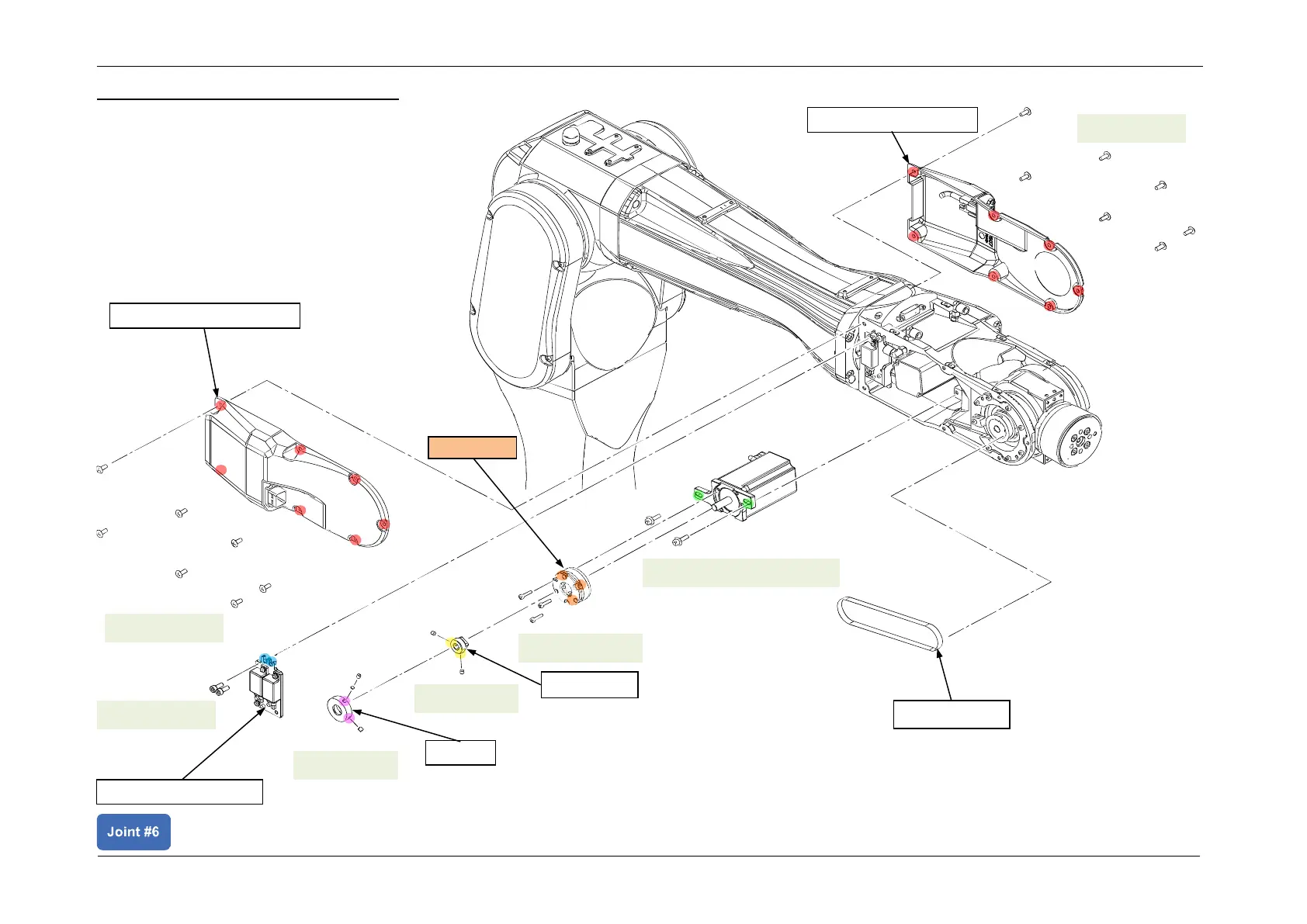

2.8.3 Joint #6 Removing the Brake
J6 Brake
Pulley 1
S05: 2-M4x4
Brake Hub
S05: 2-M4x4
S01: 3-M3x13
Arm4 Side Cover (left)
Arm4 Side Cover (right)
S06: 4-M4x10
S06: 7-M4x10
J6 Timing Belt
Cable Protection Plate
S01: 2-M4x10
S01: 2-M4x15 and washer
