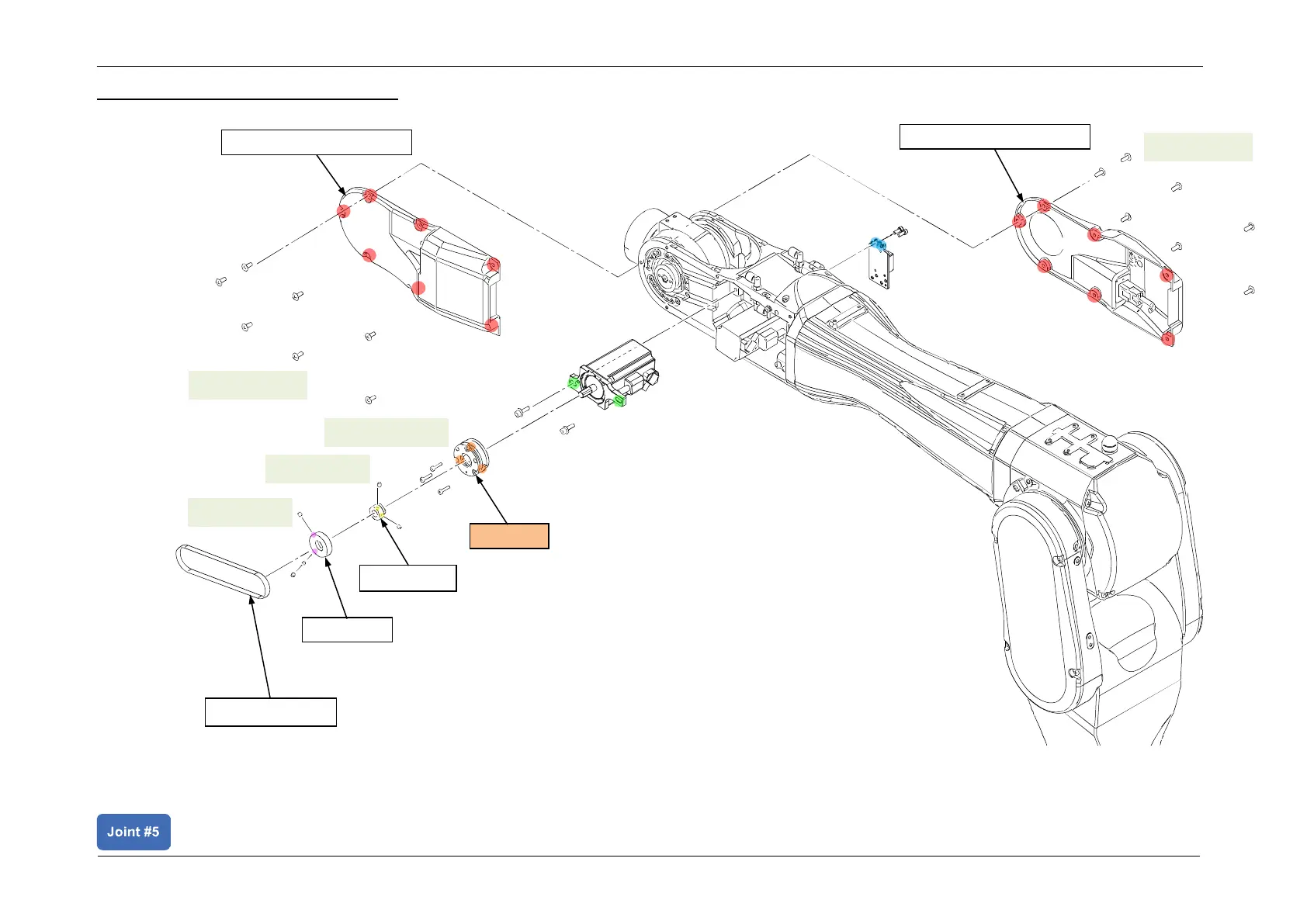

2.7.3 Joint #5 Replacing the Brake
Arm4 Side Cover (right)
Arm4 Side Cover (left)
S06: 7-M4x10
S06: 4-M4x10
J5 Timing Belt
Pulley 1
Brake Hub
J5 Brake
S05: 2-M4x4
S05: 2-M4x4
S01: 3-M3x13
