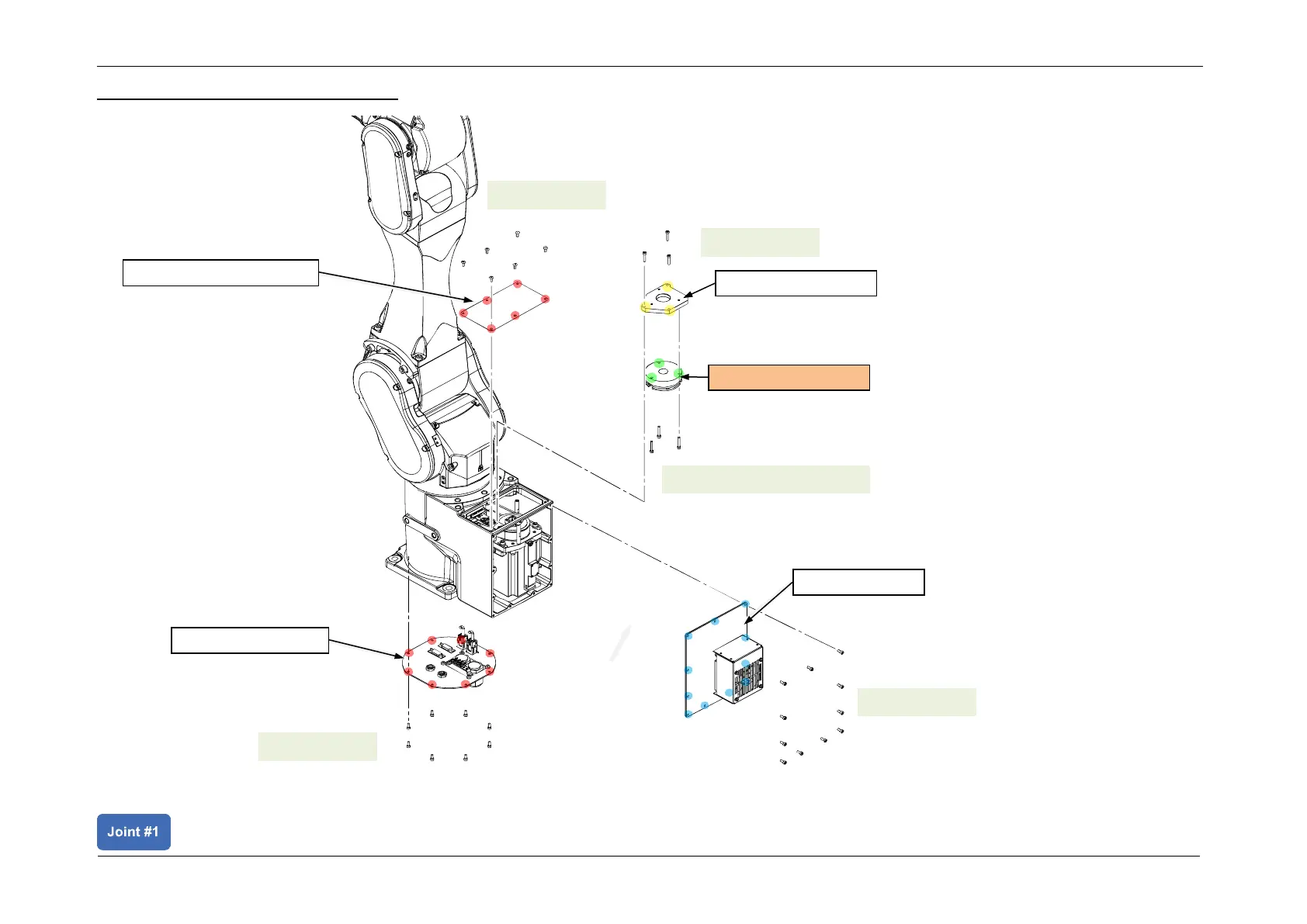

2.3.3 Joint #1 Replacing the Brake
S06: 6-M4x10
S01: 11-M4x10
S01: 3-M4x20
Base Cover
Base Maintenance Cover
J1 Brake Plate
S01: 8-M4x10
Connector Plate
J1 Brake
S01: 3-M6x30 and washer
