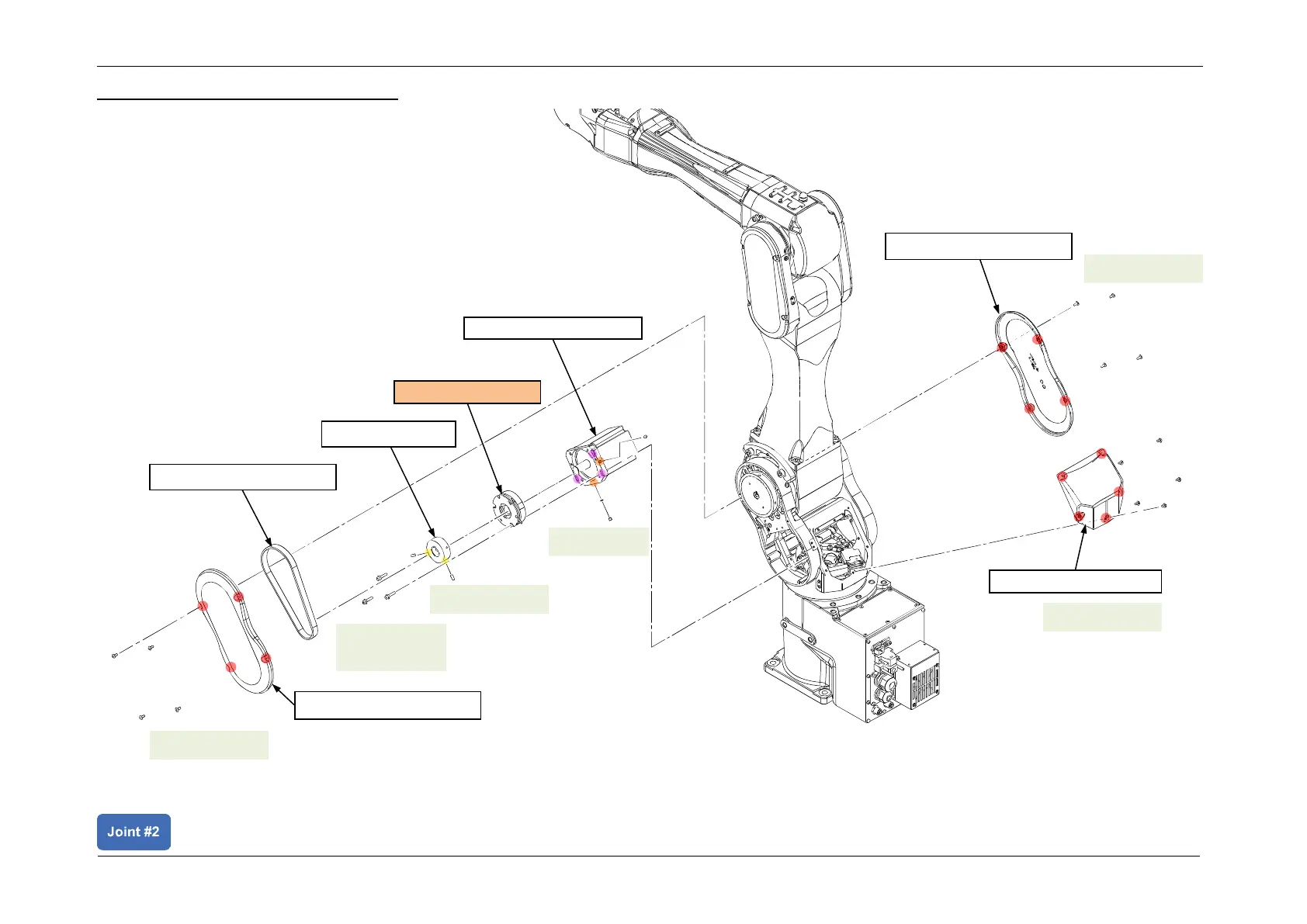

2.4.3 Joint #2 Replacing the Brake
J2 Motor Unit
Motor Pulley
S05: 2-M5x12
J2 Brake
S05: 2-M6x6
Arm1 Center Cover
S06: 5-M4x10
Arm1 Side Cover
S06: 4-M4x10
J2 Timing Belt
Arm1 Side Cover
S06: 4-M4x10
S01: 3-M5x25
and washer
