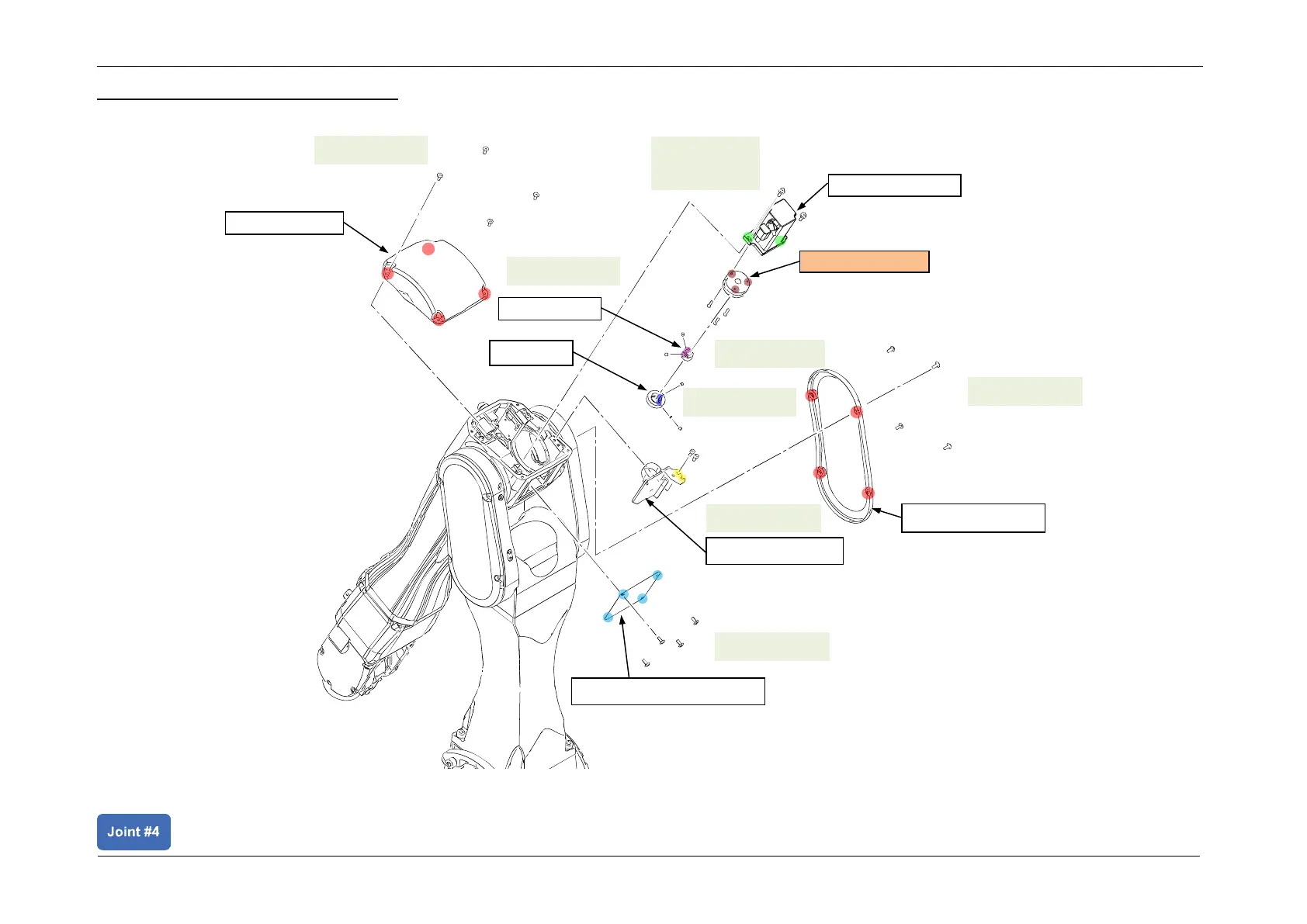

2.6.3 Joint #4 Replacing the Brake
J4 Motor Unit
Arm3 Cover
Arm3 Maintenance Cover
Arm2 Side Cover
Cable fixing plate
S06: 4-M4x10
S06: 4-M4x10
S01: 2-M4x15
and washer
S01: 2-M4x10
S06: 4-M4x8
J4 Motor Brake
Brake Hub
Pulley 1
S05: 2-M4x4
S05: 2-M4x4
S01: 3-M3x13
