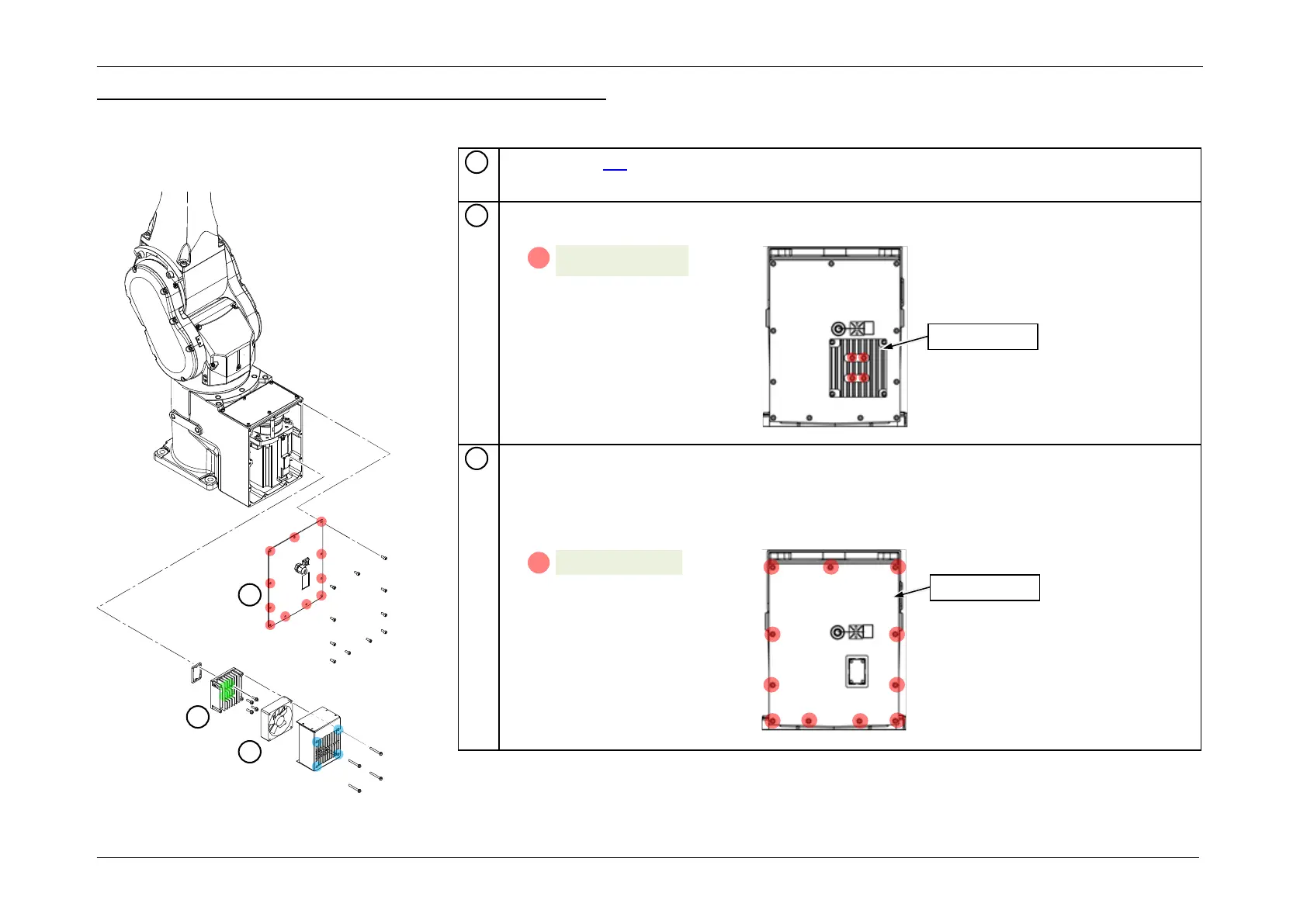

2.14.3 Base Cover (M/C Cable Downward) (C8XL, C12XL)
Standard Model/Cleanroom Model
Remove the fan.
Remove the heat sink and a Rubber Gasket.
Remove the base cover.
POINT
For the cleanroom model, install a Rubber Gasket between the heat sink and the base
cover.
1
2
S01: 4-M4x15
A
Heat sink
3
S01: 11-M4x10
A
Base cover
1
2
3
