C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-319 Rev.1

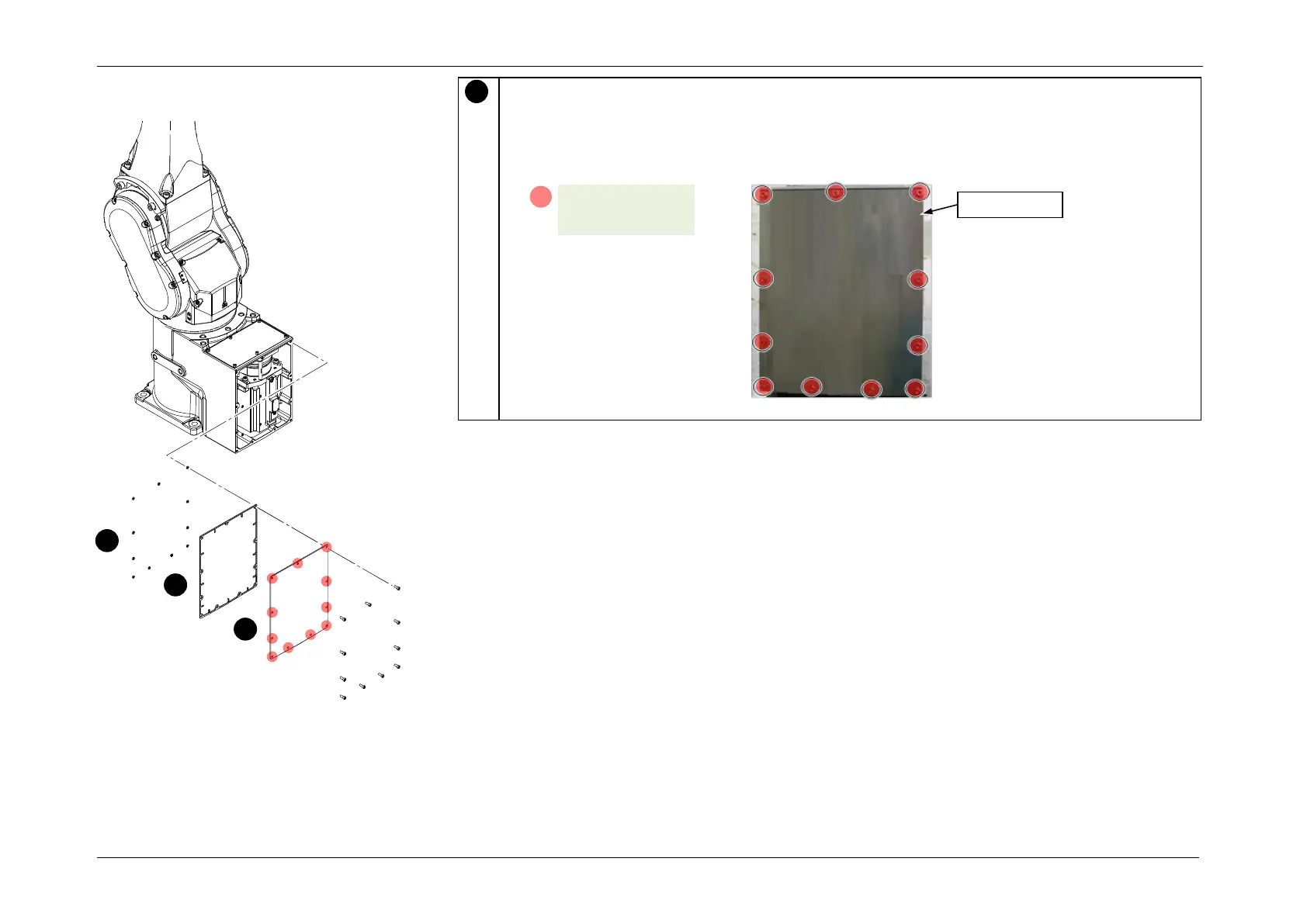

Install the base cover.
CAUTION
When installing the cover, be careful not to pinch the Rubber Gasket and cables. Also, do
not bend or push the cables in using excessive force.
3
S01: 11-M4x10
(4.0 +/- 0.2 N⋅m)
A
Base cover
Base Cover (M/C Cable Downward)
(C8, C8L): Protection Model
Installation
1
2
3
Installation
