C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-321 Rev.1

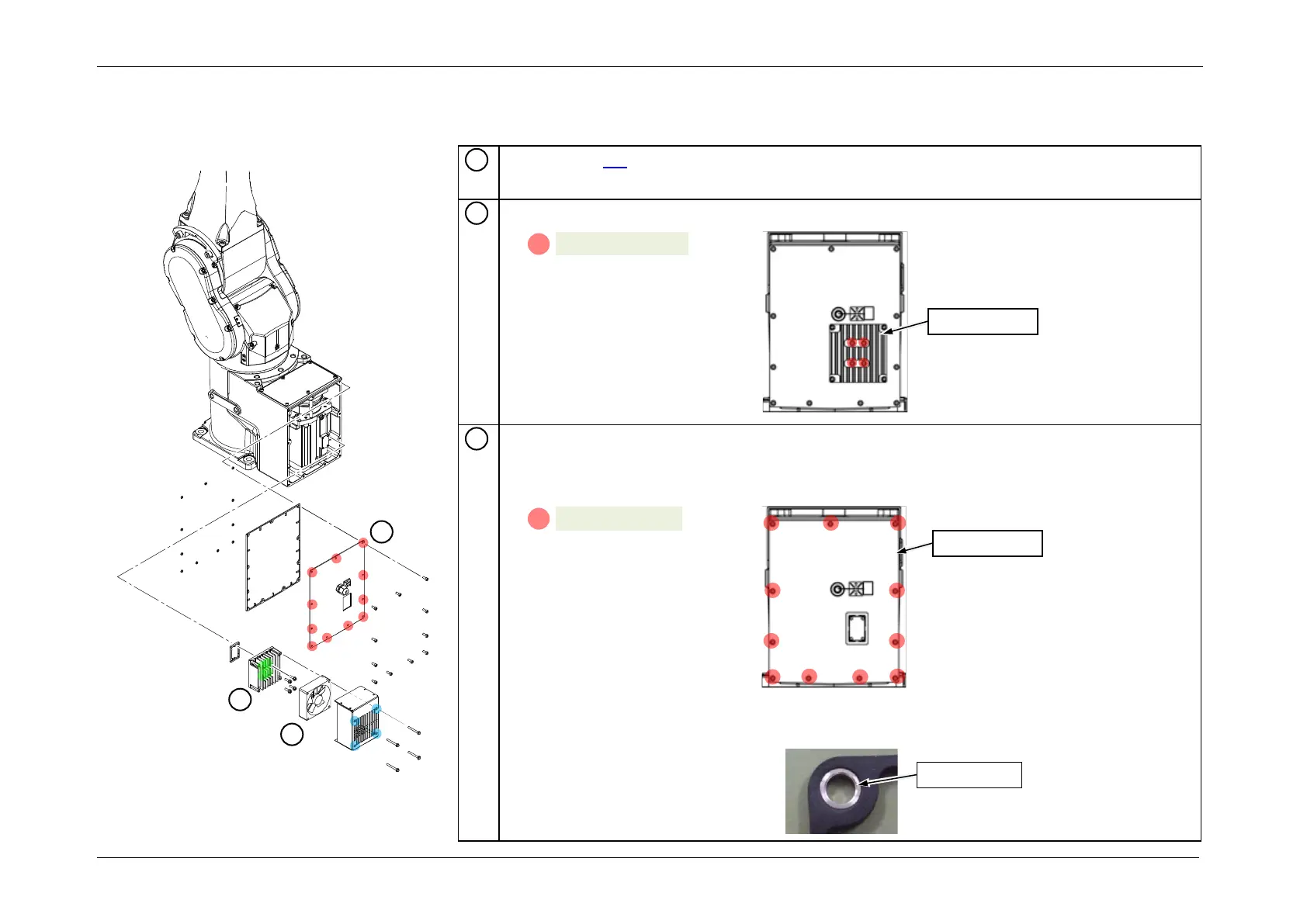

Protection Model
A. Removal
Remove the fan.
Remove the heat sink.
Remove the base cover.
POINT
When removing the base cover, also remove the base rear gasket.
CAUTION
The Rubber Gasket has spacers. Be careful not to lose these spacers.
1
2
S01: 4-M4x15
A
Heat sink
3
Spacer
S01: 11-M4x10
A
Base cover
1
2
3
