C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-35 Rev.1

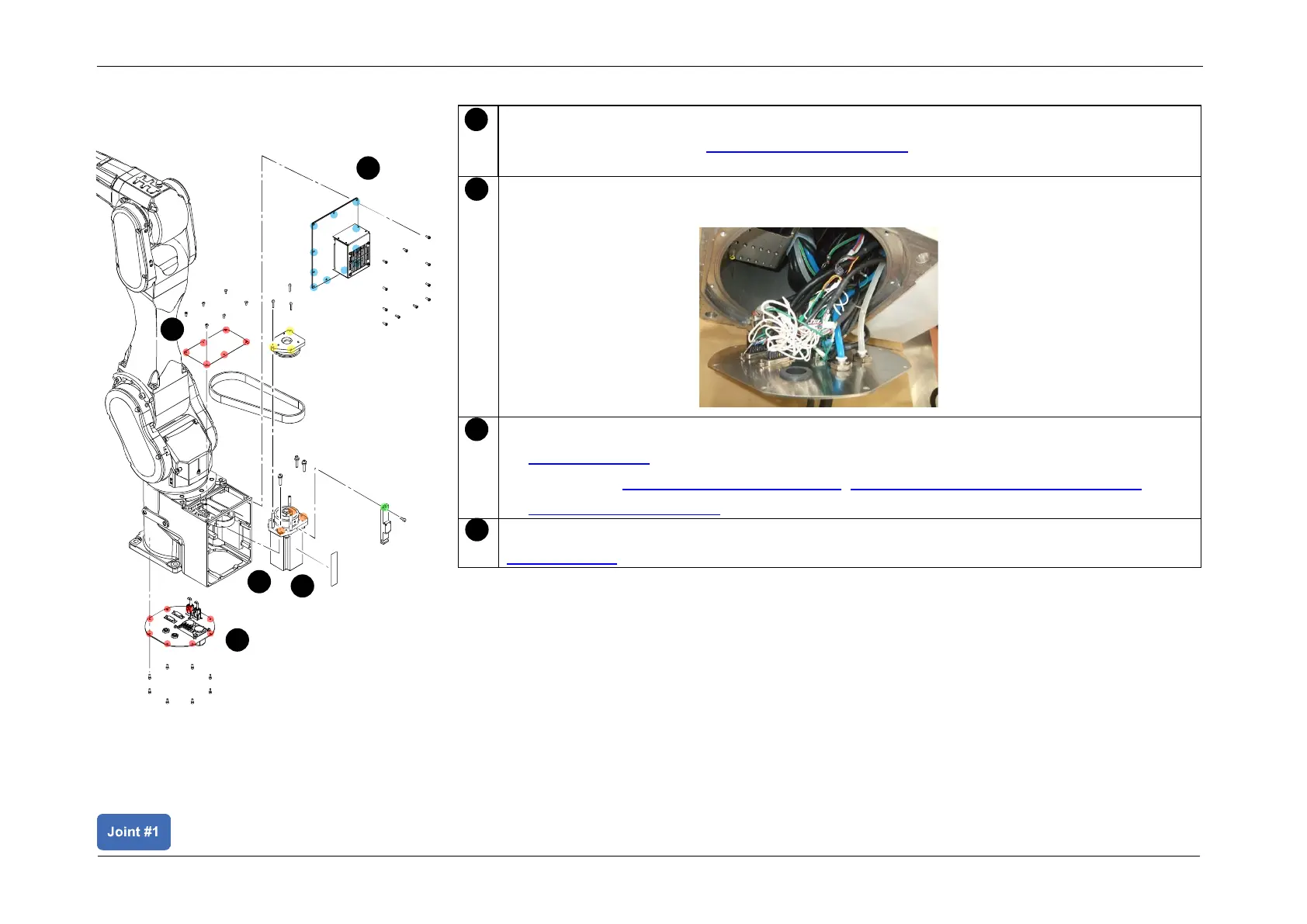

Installing the Motor Unit
Install the J1 Motor unit.
Perform steps  to  for Installing the J1 Motor Unit of the "Joint #1 (M/C Cable
Backward)".
Connect the following connectors.
Connector: CN111, CN311, CN410
Install the following covers.
• Connector plate (M/C cable downward)
• Base Cover (M/C Cable Downward: C8L), (M/C Cable Downward: C8XL, C12XL)
• Base Maintenance Cover
After assembly, perform calibration of Joint #1.
3.2 Calibration
1
2
3
3
3
2
1
3
4
