Installing the Motor Unit
Install the J1 Motor unit.

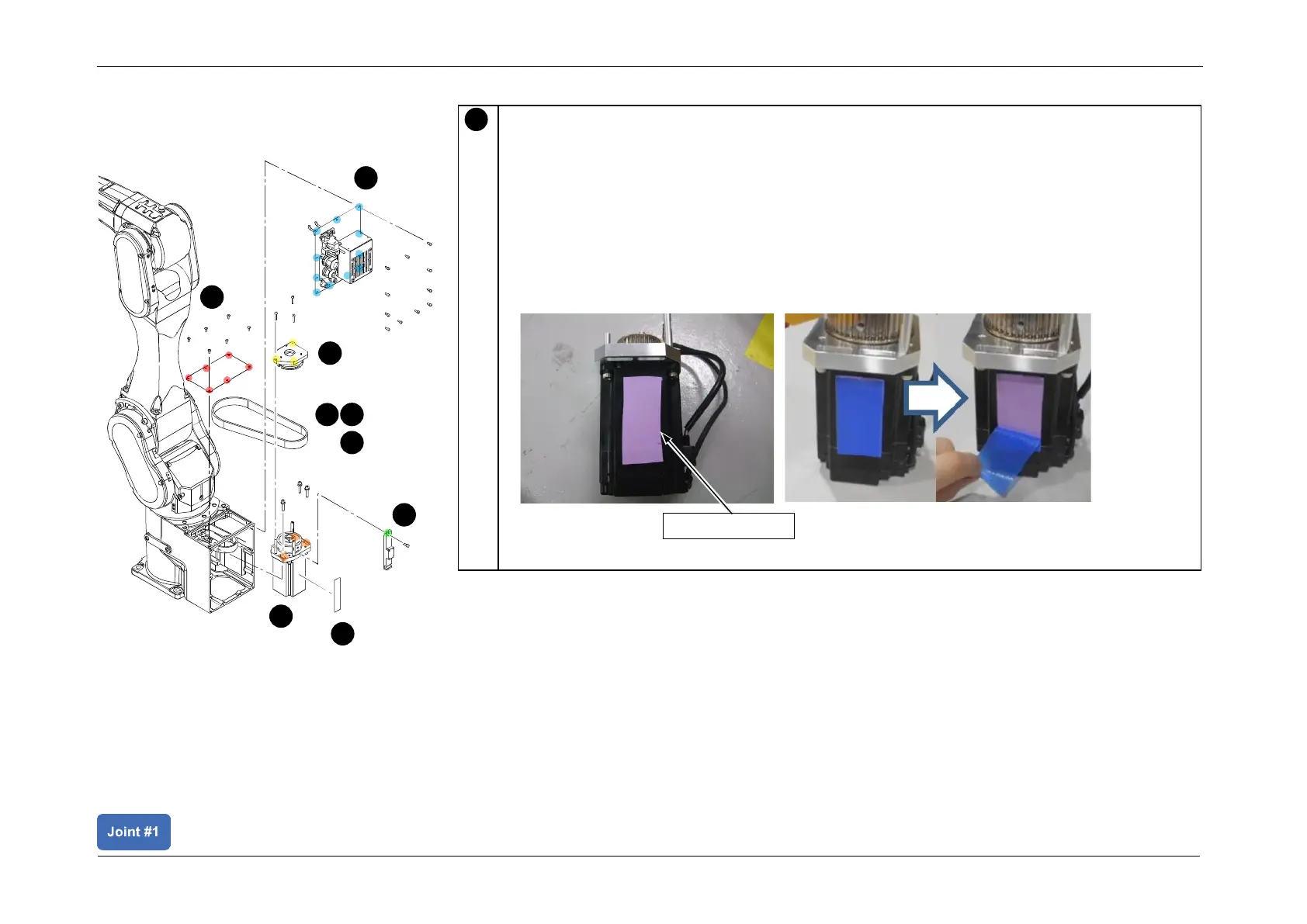

1. Check that the Radiation Sheet is installed in the position shown in the figure.
If a protective film is applied to the Radiation Sheet, remove the film.
POINT
The Radiation Sheet may be left inside the base when replacing the motor. Remove from inside the
base, and affix it on the Motor Unit.
CAUTION
Operating the Manipulator without the Radiation Sheet in place may result in heating of the
motor thus generating an error.
