C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-11 Rev.1

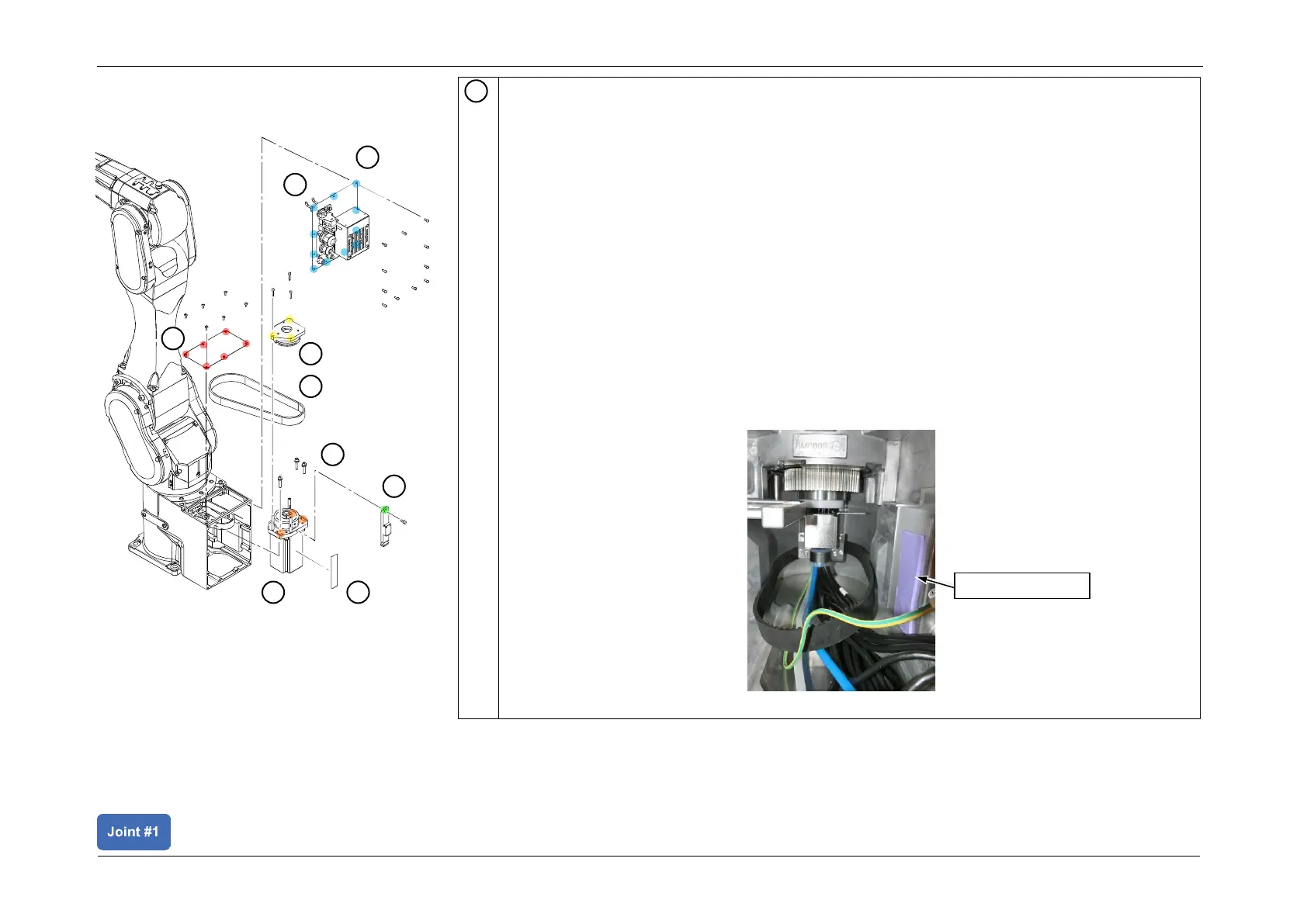

Remove the loosened screws, then remove the J1 Motor unit.
POINT
The J1 Motor unit can be removed from the Connector Plate side.
CAUTION
The Radiation Sheet may be left inside the base. It will be used again during installation of
the Motor Unit, so remove it from inside the base.
8
Radiation Sheet
1
2
4
5
6
3
7
8
4
Removing the Motor Unit
