C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-10 Rev.1

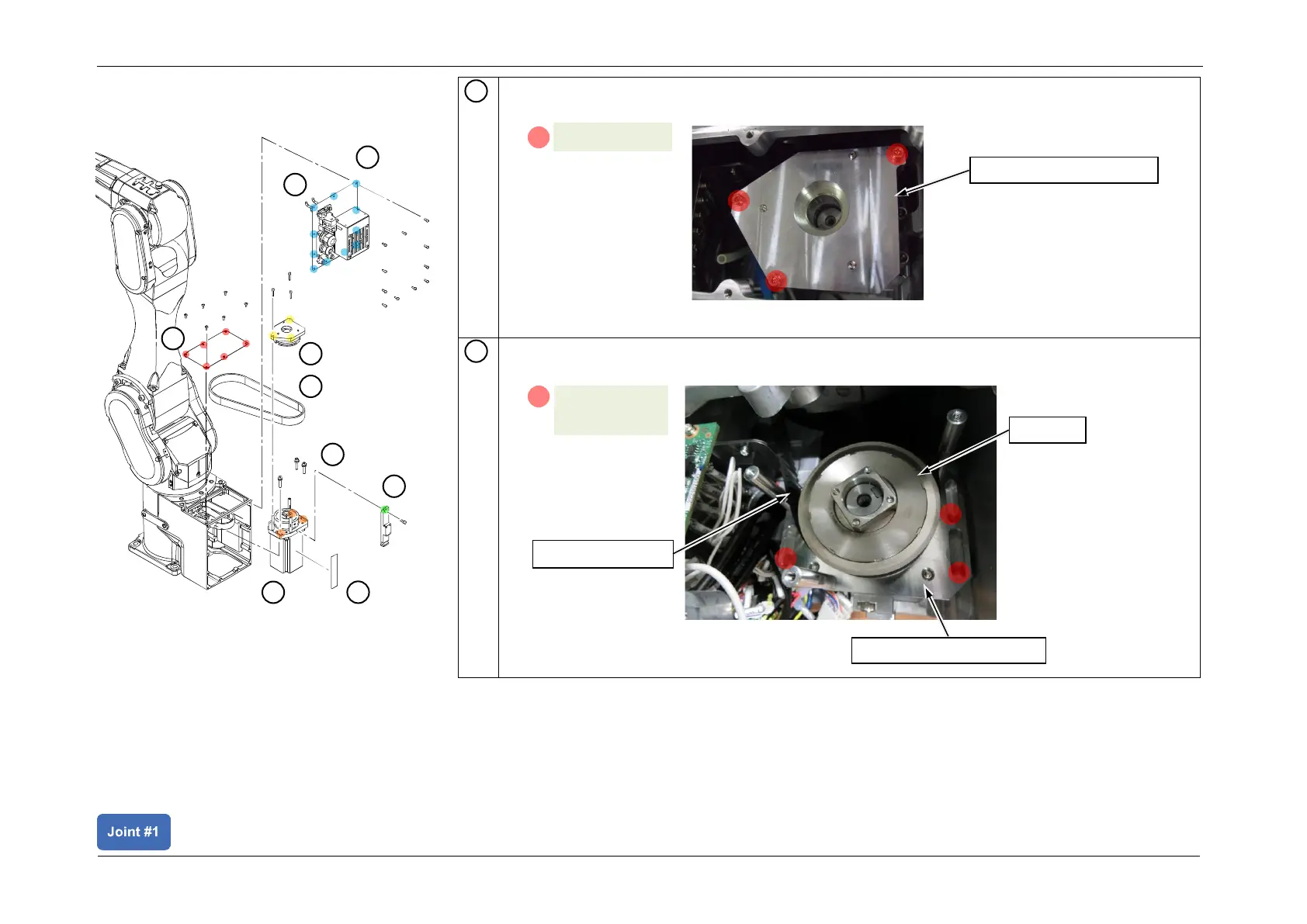

Remove the J1 brake plate.
Loosen the screws securing the J1 Motor Plate to the base, and remove the J1 Timing Belt
from pulley 1.
6
A
S01: 3-M4x20
J1 brake plate
7
A
S01: 3-M6x30
and washer
Pulley 1
J1 Motor Plate
J1 Timing Belt
1
2
4
5
6
3
7
8
4
Removing the Motor Unit
