<C8XL/C12XL only>

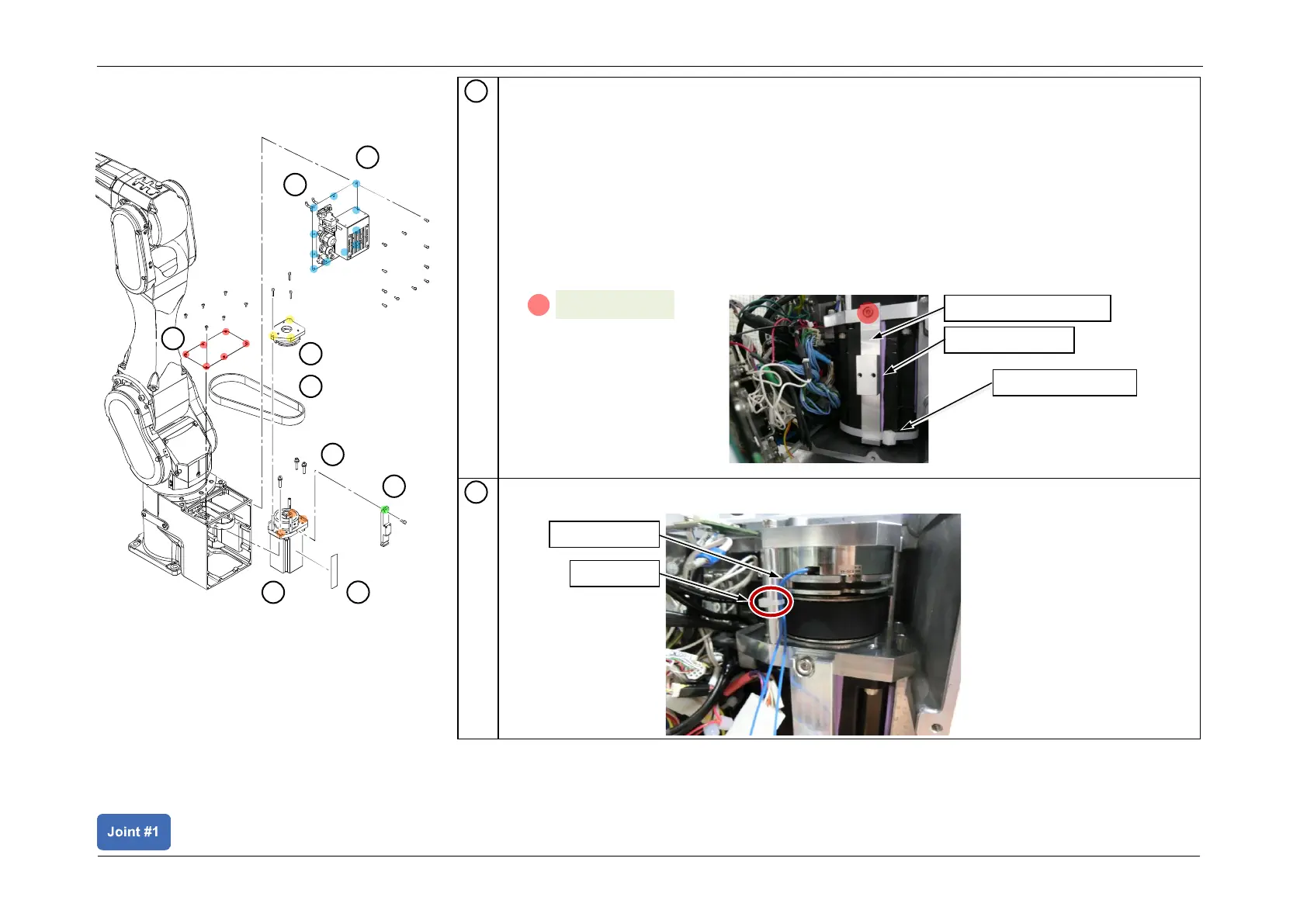

Remove the Heat Radiation Block and the Radiation Sheet.
1. Cut the wire tie (AB350), and remove the Heat Radiation Block.
2. Remove the Radiation Sheet.
CAUTION
• The Heat Radiation Block, bolts, and Radiation Sheet will be used again during
installation. Store it so that you do not lose it.
• The Radiation Sheet is easy to break, so be careful when removing it.
Cut the wire tie binding the brake cable to the J1 Motor Plate shaft.
4
A
S01: 1-M5x15
Radiation Sheet
Wire tie (AB350)
Heat Radiation Block
5
Brake cable
Wire tie
1
2
4
5
6
3
7
8
4
Removing the Motor Unit
