C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-13 Rev.1
2. Set the J1 Timing Belt around pulley 2, and hold the belt so that it does not fall.
3. Set the J1 Timing Belt around pulley 1, and fix the J1 Motor unit to the base temporarily.
A
S01: 3-M6x30
and washer
Pulley 1
J1 Motor Plate
J1 Timing Belt
J1 Timing Belt
Pulley 1
Pulley 2

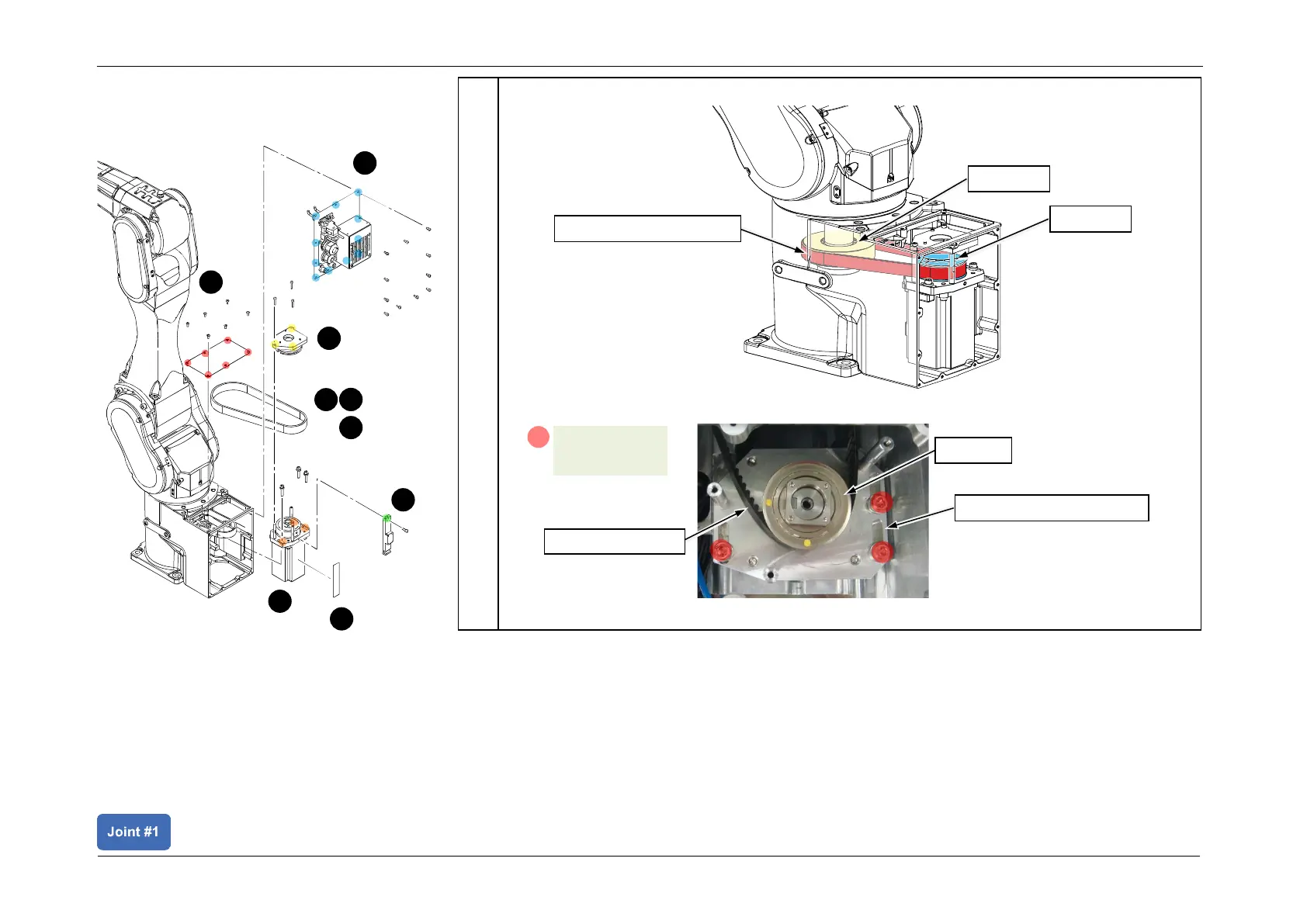

Installing the Motor Unit
