2.14.15 Connector Plate (M/C Cable Downward)
Standard Model/Cleanroom Model
CAUTION
• Cables are connected internally, so do not pull with force when removing.
• At reassembly, check the cable arrangement when removing the Connector Plate in
order to return to a reasonable wiring arrangement.
• When installing the Connector Plate, do not nip the Rubber Gasket or cables, or bend
and push them in using excessive force. It may result in damage to the cables,
disconnection, and/or contact failure. These are extremely hazardous and may result
in electric shock and/or improper function of the robot system.

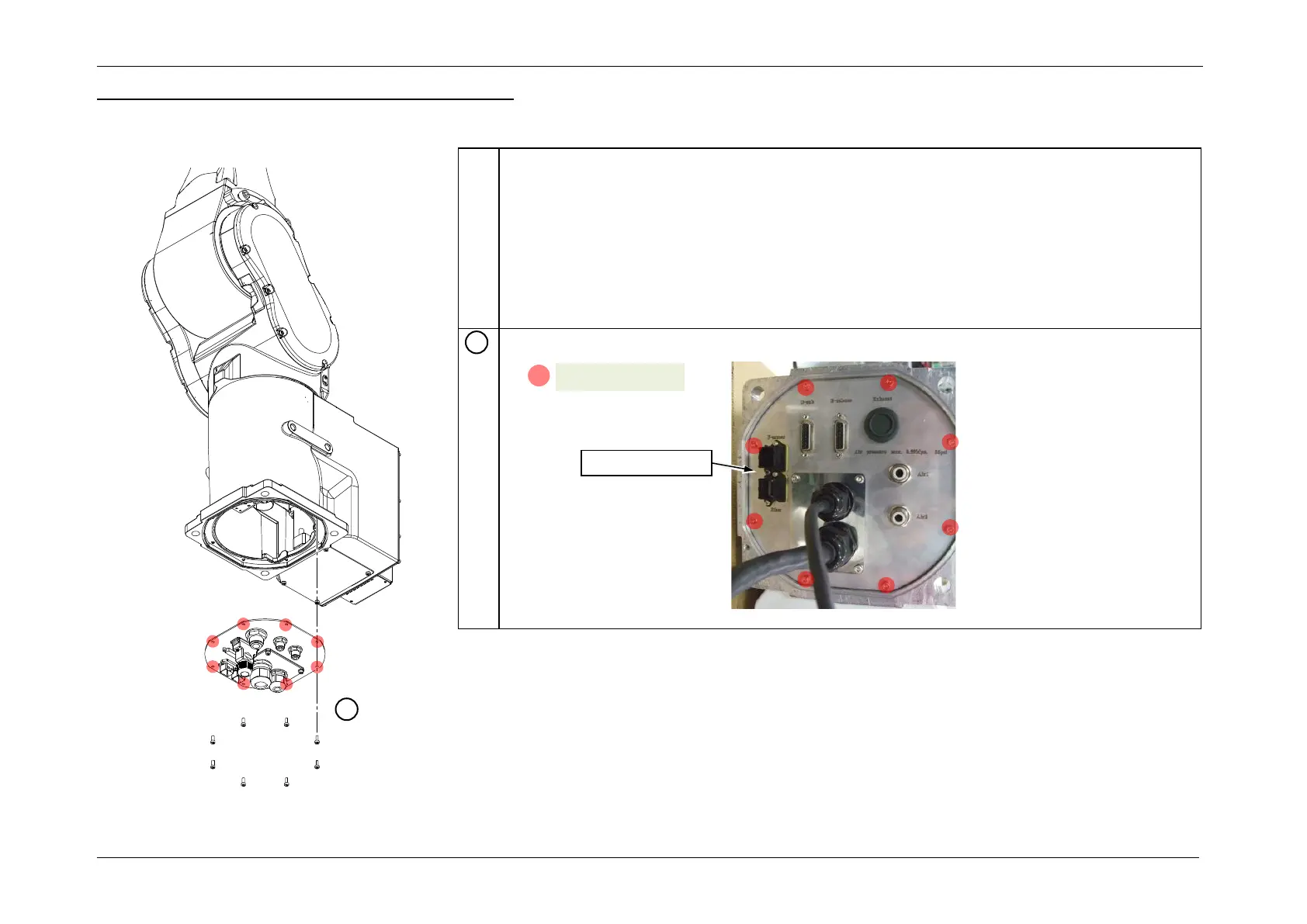

Remove the Connector Plate.
1
S01: 8-M4x10
A
Connector Plate
1
