C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-364 Rev.1
Protection Model
A. Removal
CAUTION
• Cables are connected internally, so do not pull with force when removing.
• At reassembly, check the cable arrangement when removing the Connector Plate in
order to return to a reasonable wiring arrangement.

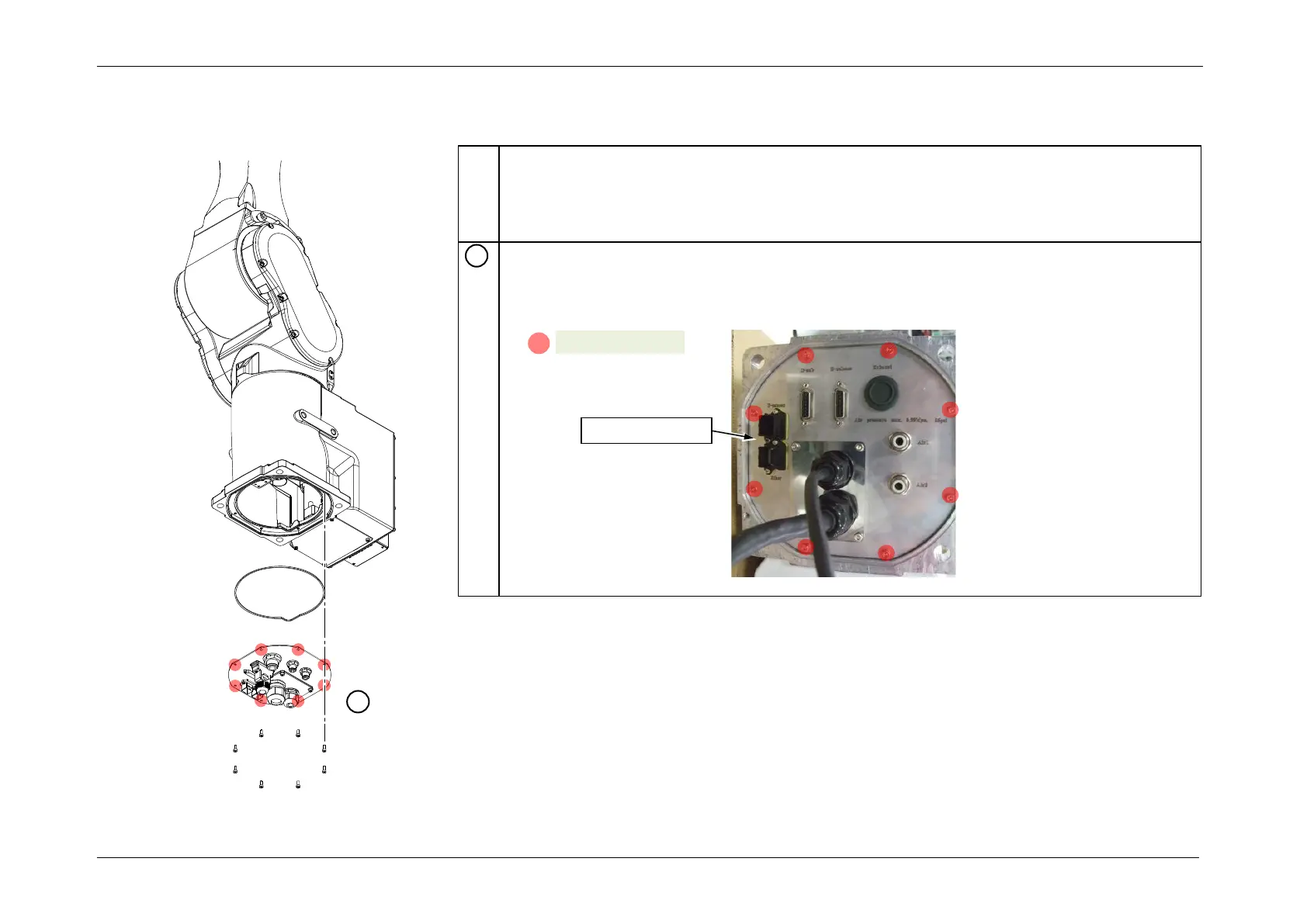

Remove the Connector Plate.
POINT
When removing the Connector Plate, also remove the base bottom gasket together.
1
S01: 8-M4x10
A
Connector Plate
1
