B. Installation
CAUTION
When installing the Connector Plate, do not nip the Rubber Gasket or cables, or bend and
push them in using excessive force. It may result in damage to the cables, disconnection,
and/or contact failure. These are extremely hazardous and may result in electric shock
and/or improper function of the robot system.
Install the base bottom gasket in the groove on the base bottom.
POINT
If any damage or deterioration is observed in the Rubber Gasket, replace the Rubber
Gasket.

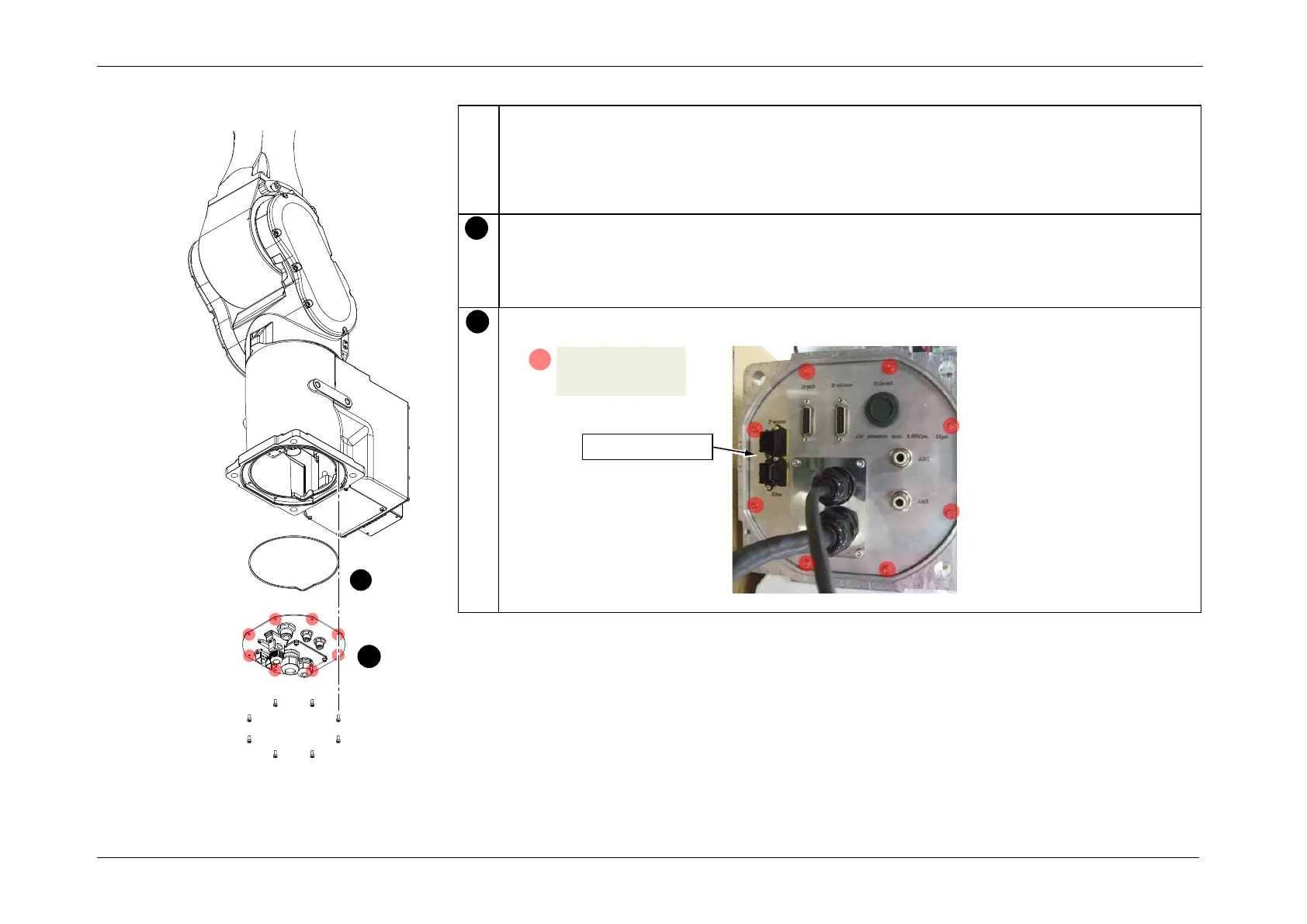

Install the Connector Plate.
1
2
S01: 8-M4x10
(4.0 +/- 0.2 N⋅m)
A
Connector Plate
2
1
