C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-34 Rev.1

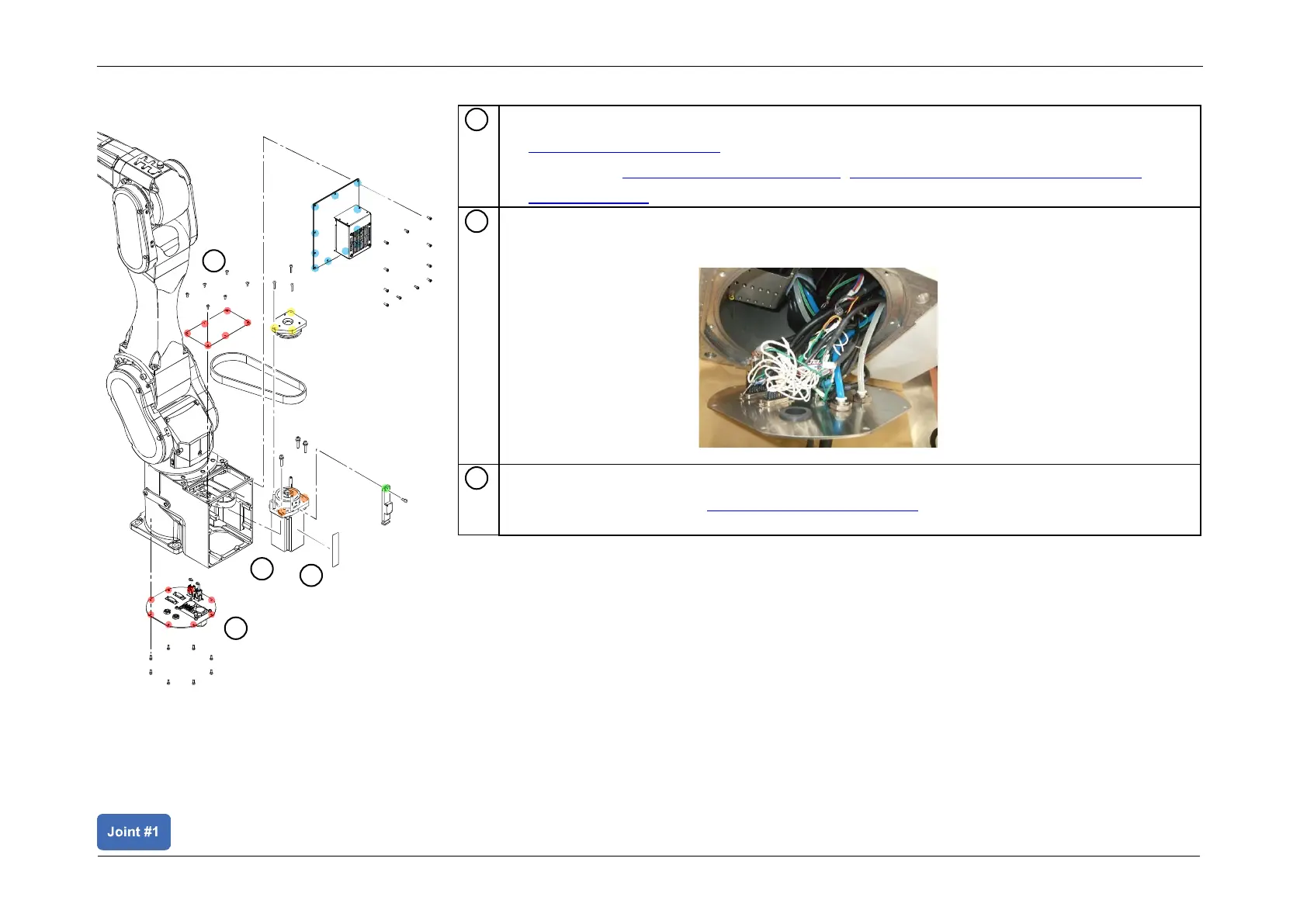

Removing the Motor Unit
Remove the following covers.
• Base Maintenance Cover
• Base Cover (M/C Cable Downward: C8L), (M/C Cable Downward: C8XL, C12XL)
• Connector plate (M/C cable downward)
Disconnect the cables from the base and disconnect the following connectors.
Connector: CN111, CN311, CN410
Remove the J1 Motor unit.
Perform steps  to  for Removing the J1 Motor Unit of the "Joint #1 (M/C Cable
Backward)".
1
2
3
1
2
1
3
